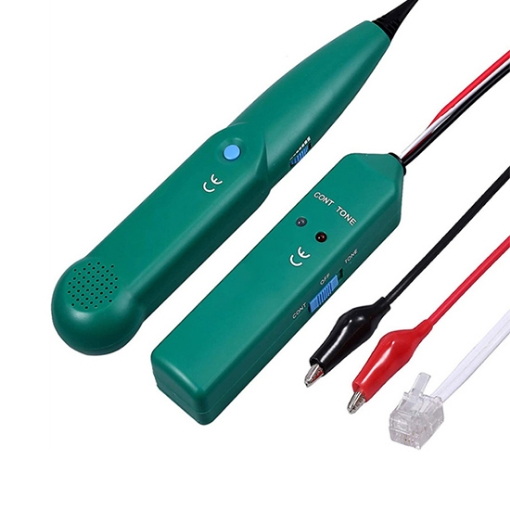

The circuit breaker tracer adopts a handheld design with audio signal reminders and can determine the status of the cable in operation and accurately identify the location of the line break. Detect fault points without damaging the vehicle circuit.
Fully Functional
- Inspect without interrupting the use of cables, and accurately identify the route and location of the break.
- Send a single or dual audio signal to the target cable line. The earphone is inserted into the hole to put on the earphone in a noisy environment. Anti-jamming receiver horn, accurate outgoing signal.

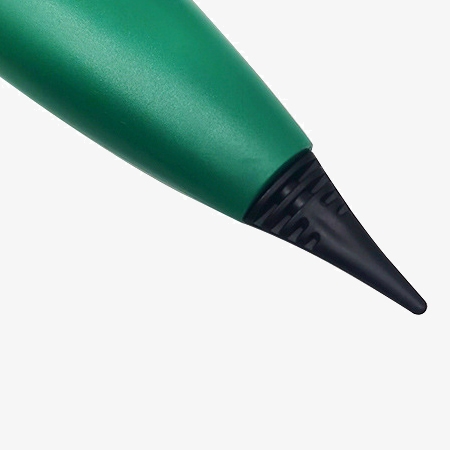

- The probe can be directly exposed to bare metal wires for safer and more precise use.
Convenient Operation
- Small size, high sensitivity, and more convenient detection.
- Includes two functions "CONT" and "TONE" for hunt and pair. 7-speed adjustable volume, for a variety of environments.
- Sender and receiver using 9V battery.
Applications
The circuit breaker finder is suitable for a variety of scenarios, such as circuit maintenance in commercial buildings, shopping malls, and other places, power system fault troubleshooting on factory production lines, circuit maintenance in residential areas and residential buildings, and power system fault detection in public facilities such as street lights and traffic lights.
Residential Area
Commercial Building
Production Line
Facilities
| Model | SISCO-MS6812 |
| Audio Signal | 1.5kHz |
| Receiving frequency range | 100Hz~300kHz |
| Power Supply | 9V battery (6F22) |
| Transmitter Dimension | 145mm×35mm×25mm |
| Receiver Dimension | 238mm×43mm×26mm |
| Weight | 240g |

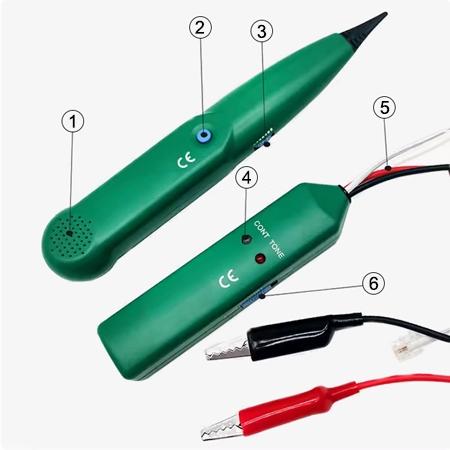

Structure Diagram

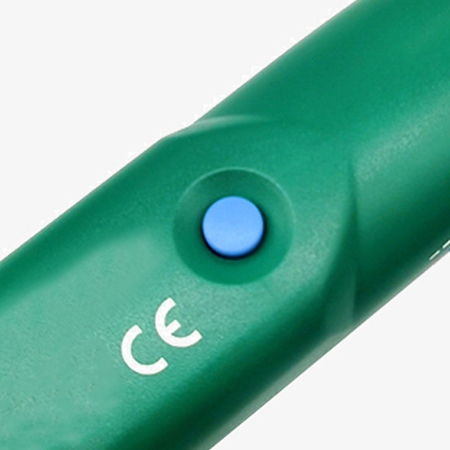

Speaker- Button
- Volume adjustment
- Indicator light
- Test clip
- Function switch

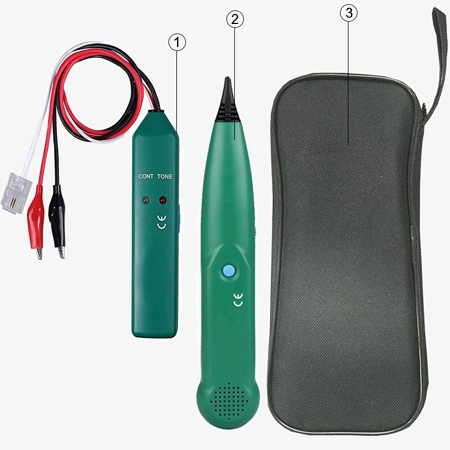

Packing List
- Receiver
- Transmitter
- Portable Storage Bag
Q1: How does the Circuit Breaker Finder work?
A1: The working principle of a circuit breaker tester is based on the principle of current detection and electromagnetic induction. Circuit breaker finder usually installs a sensor in the circuit to detect the change of current in real time. When the current in the circuit reaches or exceeds the rated current of the circuit breaker, the circuit breaker will automatically trip and cut off the circuit. At this time, the circuit breaker detector will detect the change of current, and then generate an instantaneous voltage signal through the principle of electromagnetic induction, which can be sensed by the detector. The circuit breaker detector usually converts the detected signal into a digital signal and analyzes and processes it through a computer or other equipment. In this way, real-time monitoring and control of the circuit operation status can be achieved. Through the circuit breaker detector, faults and problems in the circuit can be discovered in time, and corresponding measures can be taken to repair them to ensure the safe operation of the circuit.
Q2: What are the main functions of Circuit Breaker Finder?
A2: The main functions of the circuit breaker finder include but are not limited to:
Fault location: In complex electrical layouts, it may be difficult to manually find a specific circuit breaker. The circuit breaker finder can accurately find the location of the circuit breaker in the circuit.
Fault diagnosis: Easy to operate, usually only requires the probe of the circuit breaker finder to be connected to the socket or switch of the circuit, and then the device will indicate which circuit breaker controls the circuit, and will use a variety of signals such as sound, light or vibration to indicate, so as to quickly analyze the cause of the fault.
Quick response: When a circuit fails, it can respond quickly to cut off the faulty circuit and prevent the problem from expanding.
Easy to operate: The design is user-friendly and easy to operate. Even non-professionals can quickly get started. There is no need to physically contact the circuit or circuit breaker. Non-invasive detection is usually suitable for many types of electrical panels and circuit breakers.
Q3: What are the advantages of a circuit breaker finder?
A3: The advantages of a circuit breaker finder are Improved efficiency, Reduced costs, Enhanced safety., and ease of management. Greatly shorten the troubleshooting time and improve work efficiency. Reducing economic losses caused by power outages. Avoid safety hazards caused by manual fault finding. Facilitating daily management and maintenance of the power system.
Tips: Recommendations for Purchasing Circuit Breaker Finders
When choosing a circuit breaker finder, consider the following points:
- Safety: make sure the finder meets relevant safety standards and certification requirements.
- Compatibility: choose a finder model that is compatible with the power system in which it is located.
- Functionality: choose a finder with necessary functions according to your actual needs, such as whether remote monitoring functions are required.
- Brand reputation: choose products from well-known brands, and the quality is more guaranteed.
