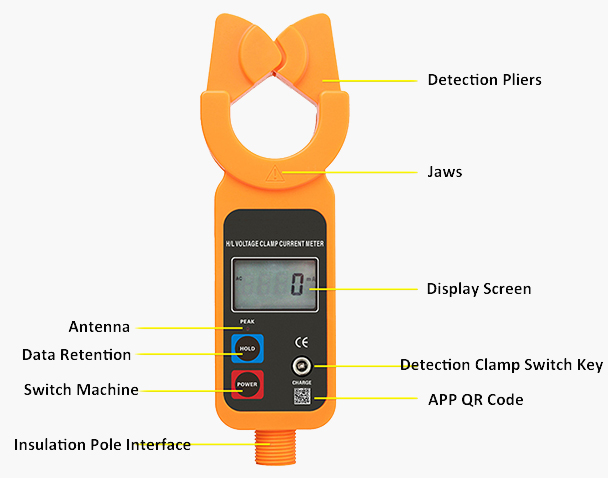

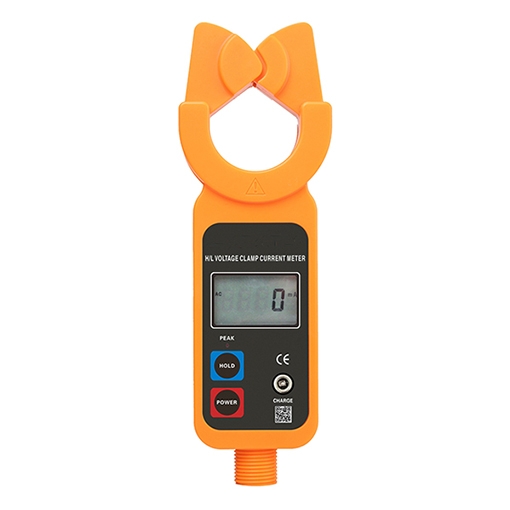

The Bluetooth clamp ammeter has functions such as peak hold, data hold, data storage, and Bluetooth. The clamp meter's special clamp ammeter can easily clamp or evacuate the tested wire by pressing or withdrawing the insulating rod, saving time and quickly, ensuring uninterrupted testing throughout the year High precision, high reliability, and high stability.
- The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy, and stable test.
- The innovative automatic plug and pull structure makes it the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient.
- With Bluetooth communication, after installation, the APP(support android system)mobile terminals can be used to testing operations and view test records.

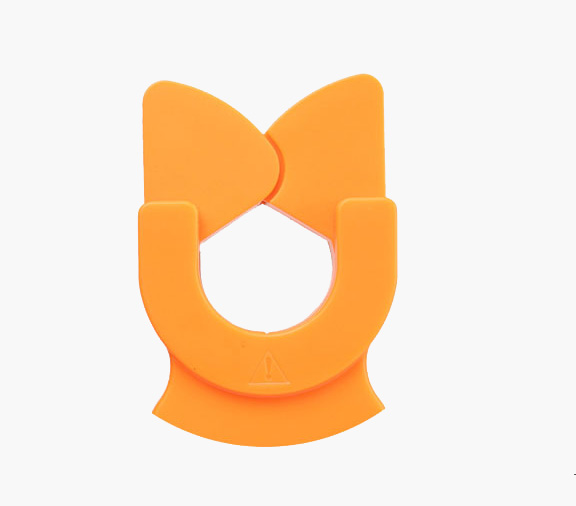

Clamp closure for higher resolution
- CT design closed mutual inductance
- Using resolution up to 0.01mA
Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
| Model | SISCO-ETCR9000A |
| Current Range | 0.00mA-1200A AC |
| Resolution | 1mA |
| Accuracy | 0mA-99.9A: ±1%rdg±5dgt 100A-599: ±1.5%rdg±5dgt 600A-1200A: ±2%rdg±5dgt |
| CT Size | φ48mm |
| Meter Dimensions | 76mm×255mm×31mm |
| Weight | 6kg |
| Power Supply | Ablelithium battery DC 7.4V 600mAH |
| LCD Size |
47mm*28.5mm |
| Sampling Rate | 2 times/second |
| Communication Interface | Bluetooth, straight distance 10m |
| Data Storage | 99 groups, stored process display MEM symbol, "FULL" symbol display indicate that storage full |
| Peak Hold | Automatically hold the highest test value |
| Data Hold | In usual test mode, press the HOLD key to keep data, "HOLD" symbol display |
|
Overflow Display |
Exceed measure range overflow function: "OL A" symbol display |
|
Polarity Indication |
In DC current test auto-identified and display the "-" symbol |
| Auto Shut Down | 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption |
| Battery Voltage | When the battery voltage is lower, the low battery voltage symbol “display and reminds us to charge. |
| Data Access | "MR" symbol indication, can access all storage data |
|
Line Voltage |
Below 110kV current test, operate with insulation rods |
| Insulation Rod Dimension | Ф32mm 1m×5 piece |
| Insulation Rod Withstand Voltage | 110kV ( 5PCS insulation rod connection) |
| Accessories | Meter: 1PCS; Receiver: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET |
Q1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: Can a clamp meter measure DC current?
Yes! Clamp-on ammeters can measure AC and DC currents. The clamp meter is a kind of instrument of electronic and electrical engineering, in which the magnetoelectric type is used to measure the power frequency alternating current, and the electromagnetic type is used for both AC and DC. Since the principle of the clamp ammeter is based on the principle of the transformer, whether the iron core is tightly closed and whether there is a large amount of residual magnetism has a great influence on the measurement results. When measuring a small current, the measurement error will increase. At this time, the measured wire can be wound several times on the iron core to change the current ratio of the transformer to increase the current range.
