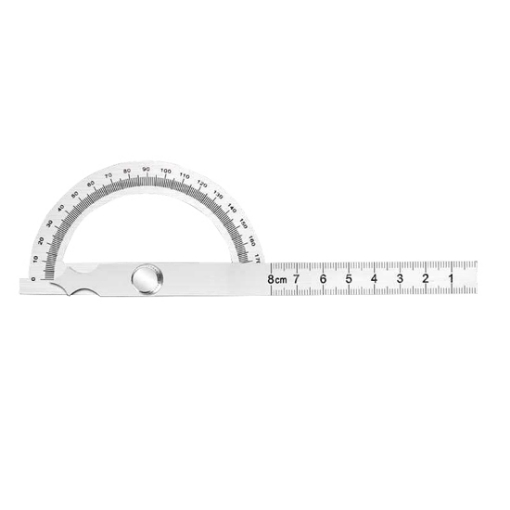

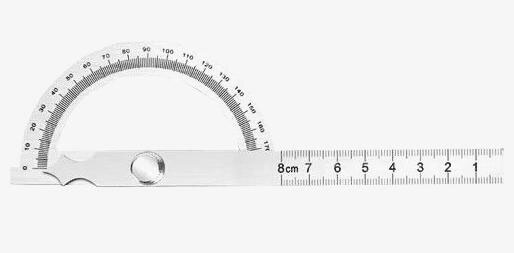

80x120mm Adjustable Stainless Steel Angle Protractor

• Model: SISCO-AP-A80120
• Measuring Range: 0-180 degrees
• Size: 80x120mm
• Total Body Length: 164mm
• Diameter of Disc: 80mm
• Width: 11mm
• Body Thickness: 1.0mm
• Weight: 52g

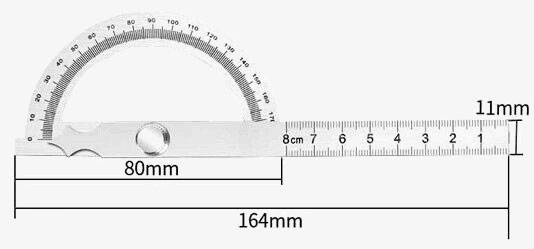

Dimension (Unit: mm)

Q1: What is an angle protractor?
A1: An angle protractor is a measuring tool used to measure angles. It typically consists of a flat, plastic or metal base with a pivoting arm that has a graduated scale marked in degrees. The arm can be rotated to any angle, allowing the user to measure the angle between two lines or the angle of a single line relative to a horizontal or vertical axis.

Q2: How do I use an angle protractor?
A2: To use an angle protractor, place the base of the protractor on the surface you wish to measure the angle of. Align the protractor's vertical or horizontal axis with one of the lines you want to measure the angle between. Then, rotate the protractor's arm until it is aligned with the other line you want to measure. Read the angle measurement from the graduated scale on the arm.

Q3: What are some common applications of angle protractors?
A3: Angle protractors are commonly used in a variety of applications, including carpentry, metalworking, engineering, and drafting. They are often used to measure the angle of a cut to ensure it is accurate and to create angled cuts for various projects. They are also useful in determining the slope of a roof or the angle of a hillside. In addition, angle protractors can be used in mathematical and scientific applications to measure angles between lines or to calculate trigonometric functions.

Tips: How do I use a stainless steel angle protractor?

• Identify the angle you want to measure: Determine the angle you want to measure, and make sure the protractor is appropriate for the angle size you need.
• Place the protractor on the angle: Place the protractor on the angle you want to measure, so that the base of the protractor is aligned with one of the angle sides.
• Align the protractor with the angle: Make sure the protractor is perfectly aligned with the angle, so that one of the protractor's lines is parallel to the angle side the protractor is aligned with.
• Read the angle measurement: Look at the scale on the protractor and read the angle measurement where the second angle side intersects the scale.
• Adjust for the direction of the angle: If the angle is facing down, add 180 degrees to the measurement to get the actual angle value.

Note that some protractors may have additional features, such as a locking mechanism to hold the protractor in place or an adjustable arm to measure angles that are difficult to access. Refer to the manufacturer's instructions for specific details on how to use your protractor.
