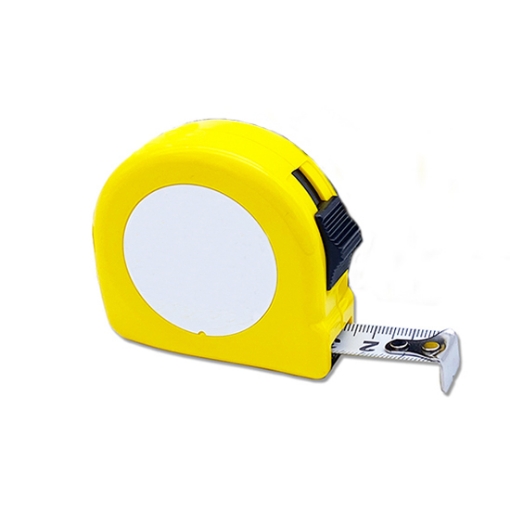

7.5m (25 ft) Steel Measuring Tape

• Model: SISCO-1001-0036
• Measuring Range: 7.5m (25 ft)
• Tape Blade Width: 25mm
• The longest horizontal length: 2.4m
• The longest vertical length: 3.8m
• Material: SK85 steel
• Weight: 386g
• Application: Measuring tool for engineering construction, household use

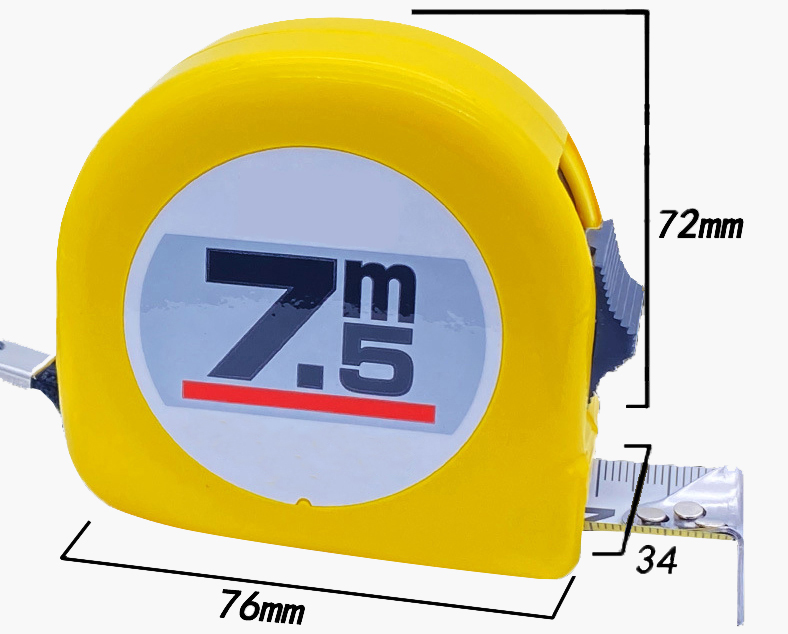

Dimension

Q1: What is a steel measuring tape?
A1: A steel measuring tape is a flexible ruler used to measure distance. It consists of a metal blade with linear measurement. Steel tape can give you accurate results at any temperature, and it's designed to withstand more wear and tear than fiberglass tape.

Q2: What is the advantage of a steel tape measure?
A2: Measuring tapes can be used for a wide variety of measurement needs in surveying, engineering, construction and more. Steel measuring tapes are popular for their durability. They are often used by professionals and anyone who needs a rugged tool. Furthermore, they are common for smaller tapes due to their rigidity.

Q3: How accurate is a steel tape measure?
A3: This amounts to 0.000645 foot or 0.00774 inch per degree F. on a 100-foot tape, and one-half as much on a 50-foot tape. As a figure that is reasonably accurate and also easy to handle, it is customary on very long runs of pipe to allow 1/10” per 100 feet for each 10° change.

Tips: What should I do if the steel tape cannot be retracted?

1. Disassemble the tape measure, wind the iron wire in the order of the pictures first, and then insert it. The outer head should be embedded in a circle around the white part.
2. After inserting the wire, turn it over to the back and put the head of the tape measure into the groove.
3. Turn the ruler bar from left to right.
4. Take the paper clip, hook the iron wire at the bottom, and hold the rolled tape measure and the iron wire on the back with your fingers.
5. The iron wire should use a paper clip to hook the "I" groove on the shell.
6. Then put the button and spring it into the blue groove.
7. Then, cover the casing, and the tape measure can be retracted after being pulled out.
