The dual-channel 60 MHz PC oscilloscope with 1 GSa/s sampling rate, 8 bits vertical resolution. PC oscilloscopes use high-performance modular hardware combined with efficient and flexible software to complete various test, measurement and automation applications.

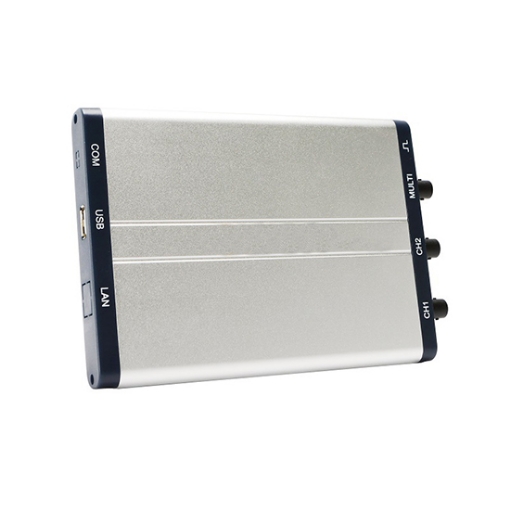

PC oscilloscope interface details
- USB interface
- Channel 1 signal input
- Channel 2 signal input
- External trigger input, trigger output or pass/fail output
- Probe compensation
- Lan network port configuration
Support SCPI
- Support SCPI secondary development
- Shock isolation function to protect the safety of computers and equipment during transient electric shocks.
Dimension Unit (mm)
Application
The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.
Â
| Model | SISCO-VDC-2062 | SISCO-VDC-2062L |
| Communication Interface | USB2.0 |
USB 2.0 (with LAN network port) |
| Bandwidth | 60 MHz | |
| Channel | 2 Channel+ Multi | |
| Sample Rate | 1 GSa/s | |
| Max. Input Voltage | 40V(DC + AC peak) | |
| Horizontal Scale (s/div) | 5ns/div - 100s/div, step by 1 - 2 - 5 | |
| Record Length | 5K | |
| Input Impedance | 1MΩ ± 2%, in parallel with 10pF ± 5pF | |
| Vertical Sensitivity | 5mV/div - 5V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate | |
| Automatic Measurement | Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B |
|
| Waveform Math | +, -, *, /, FFT | |
| Power Supply | ≤6.5W | |
| Dimension (W * H * D) | 190* 18* 120mm | |
| Weight | 0.26 kg | |
Accessories
- CD ROM
- USB cable
- Probe
- Probe Adjust
- Silicon Gel Case
- Quick Guide
Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.
Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.
Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.
Tips: Advantages of a PC-Based Oscilloscope
Compared with stand-alone oscilloscope, PC-Based USB Oscilloscopes have the following advantages:
- Small size, easy to carry.
- PC screen is larger so the waveforms can be seen more clearly.Â
- No screen component so the price is lower.
- PC interface makes it easy to process and edit files.
- Users can design their own programs to control the oscilloscope.
