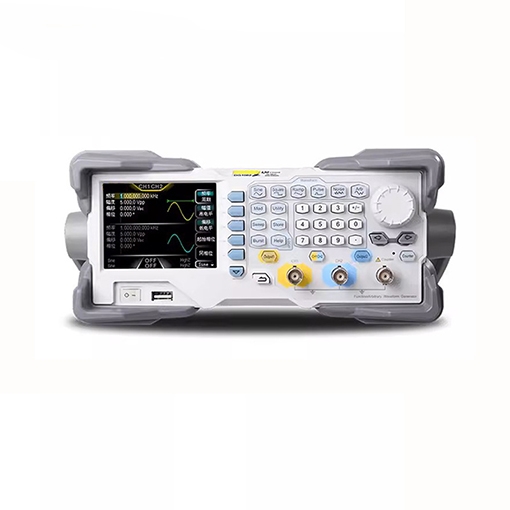

SISCO arbitrary wave generator has standard 2 full-function independent channels, which provides 7 digits/s frequency counter measurement function, which can measure the frequency, period, duty cycle, positive pulse width and negative pulse width of external input signals, and supports statistics of measurement results.
- The arbitrary waveform generator design with a 3.5-inch TFT color LCD display, which displays the menu and parameter settings of the current function, system status, prompt messages, etc.
- Equal-performance dual channels are standard, equivalent to two independent signal sources.
- Up to 160 built-in arbitrary waveforms, covering commonly used signals in various fields such as engineering applications, medical electronics, automotive electronics, and mathematical processing.
- Powerful arbitrary waveform editing function is standard, and arbitrary waveforms can also be generated through the host computer software.
- The AWG generator is equipped with standard configuration interfaces including USB Host, USB Device, LAN (LXI Core 2011 Device).
- Rich modulation functions, AM, FM, PM, ASK, FSK, PSK and PWM.
- Standard waveform superposition function, which can superimpose the specified waveform on the basic waveform and then output it.
- Standard channel tracking function, when tracking is turned on, all parameters of the two channels can be updated simultaneously according to the user's configuration.

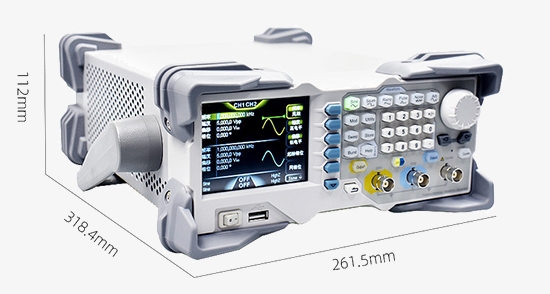

Dimension
Applications
SISCO arbitrary waveform generator (AWG) is versatile and widely used in various fields. It can simulate complex communication signals, test and develop electronic components and circuits, generate biomedical signals for medical device testing, simulate automotive sensor outputs, and test radar and sonar systems in aerospace and defense. Additionally, AWGs are used in audio equipment testing, acoustic research, educational tools, industrial automation, power quality testing, and renewable energy systems. They are essential for precise and customizable signal generation, making them invaluable for development, testing, and research in multiple domains.

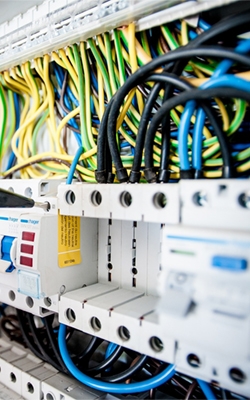

Power Quality Testing

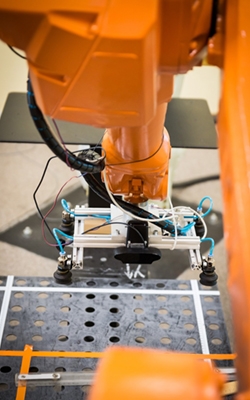

Industrial Automation
Equipment Testing
Audio Equipment Testing
Â
| Model | SISCO-AWG-DG1062Z |
| Basic Parameters | |

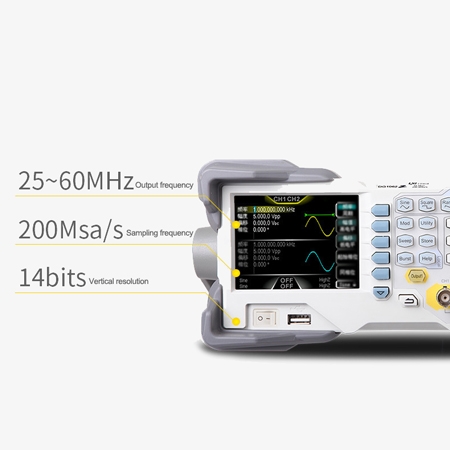

| Maximum Output Frequency | 60 MHz |
| Sampling Rate | 200 MSa/s |
| Vertical Resolution | 14 bits |
| Number of Channels | 2 |
| Arbitrary Wavelength | 8M, 3.5-inch TFT color display |
| Display | Clear graphical interface |
| Instrument Function | |
| Built-in Waveform | 5 basic waveforms, 160 ​​arbitrary waveforms |
| Frequency Characteristics | Sine wave: 1 μHz-60 MHz Square wave: 1 μHz-25 MHz Sawtooth wave/triangle wave: 1 μHz-1 MHz Pulse wave: 1 μHz-25 MHz |
| Resolution | 1 μHz |
| Amplitude Range (50Ω) | 2.5 mVpp-10 Vpp (≤10 MHz); 2.5 mVpp-5 Vpp (＞10 MHz) |
| Modulation Function | AM, FM, PM, FSK, ASK, PSK, PWM |
| Sweep Waveform | Sine wave, square wave, sawtooth wave, arbitrary wave (except DC) |
| Burst Waveform | Sine wave, square wave, sawtooth wave, pulse wave, noise, arbitrary wave (except DC) |
| Frequency meter Function | 1 μHz-200 MHz |
| Other Configurations | |
| Harmonic Generator Function | Support 8th harmonic generator |

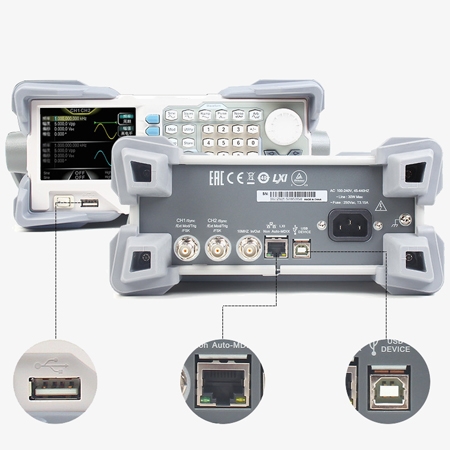

| Standard Interface | USB host, USB device, LAN ( LXI-C) |

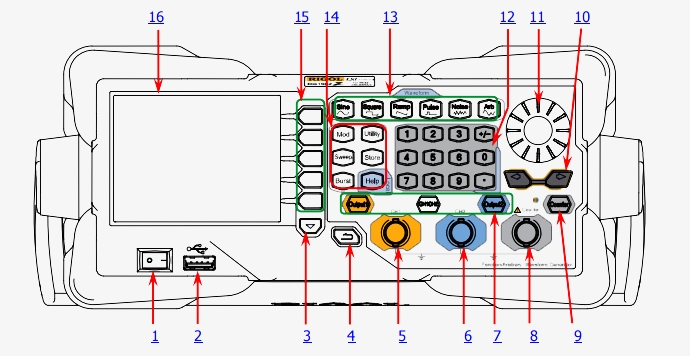

Detail
- Power button
- USB Host
- Menu page key
- Return to the previous menu
- CH1 output connector
- CH2 output connector
- Channel control area
- Counter measurement signal input connector
- Frequency meter
- Direction keys
- Knob
- Numeric keyboard
- Waveform key
- Function key
- Menu soft key
- LCD display
Q1: What is an Arbitrary Waveform Generator (AWG)?
A1: An Arbitrary Waveform Generator (AWG) is a device that generates user-defined, complex waveforms. It allows for the creation and output of a wide variety of signal shapes, beyond standard sine, square, and triangle waves.
Q2: How does an AWG differ from a standard function generator?
A2: Unlike standard function generators, which produce fixed waveforms like sine, square, and triangle waves, AWGs can produce any waveform defined by the user. This makes AWGs more versatile and suitable for complex testing scenarios.
Q3: What is the importance of the sampling rate in an AWG?
A3: The sampling rate in an AWG is crucial because it determines how accurately the waveform can be represented. A higher sampling rate provides better resolution and fidelity, ensuring the generated waveform closely matches the desired signal, which is essential for precise testing and measurement.
Tips: Â What are the main functions of an arbitrary waveform generator (AWG)?
An Arbitrary Waveform Generator (AWG) offers a range of functionalities designed to create and manage custom electronic signals. Here are the main functions of an AWG:
- Arbitrary Waveform Generation: Custom Waveform Creation: Allows users to design and generate waveforms of any shape, including complex and non-standard forms. This is crucial for applications that require specific signal characteristics that are not available in standard waveform generators.
- Waveform Editing and Storage: Provides tools to draw, modify, and refine waveforms. Users can typically adjust waveform parameters such as amplitude, frequency, and phase. Enables saving custom waveforms for future use. This feature helps in reusing complex waveforms without the need to recreate them from scratch.
- Multiple Channel Output: Many AWGs come with multiple output channels, allowing the simultaneous generation of different waveforms. This is useful for applications requiring complex signal interactions or multi-channel testing.
- Repetition and Triggering: Allows for the generation of waveforms at specific repetition rates. This function is useful for creating periodic signals or simulating repetitive events.
Triggering: Provides trigger settings to control when the waveform starts or stops. This can be based on external signals or internal conditions, which is important for synchronized testing and precise signal timing.
These functions make AWGs versatile tools in various fields, including electronics design, communication systems, scientific research, and testing.
