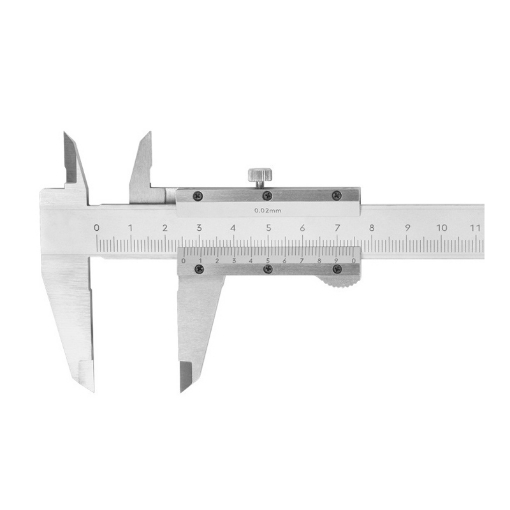

Mechanical vernier caliper is designed for measuring length, depth, inner diameter and outer diameter in science labs, medical purposes, steel industries and aerospace industries. 200 mm vernier caliper is equipped with a square depth rod, carbon steel materials, 0.02 mm reading, a fixed jaw and sliding jaw, long service life, durable, easy to use and carry.
- <Square Depth Rod> The vernier scale and the ruler frame are fixed and detachable with screws and have a long service life. The depth caliper is hidden in the inner groove. 200 mm vernier caliper is available with a square-depth rod.
- <Locked Anywhere> sisco mechanical vernier caliper comes with a semi-circular non-slip push handle and metal fastening screws. Any position of the vernier caliper can be locked, and the reading is retained for easy operation.
- <Made of Carbon Steel> The mechanical vernier caliper is made of carbon steel, and the main caliper and ruler frame are heat treated as a whole.

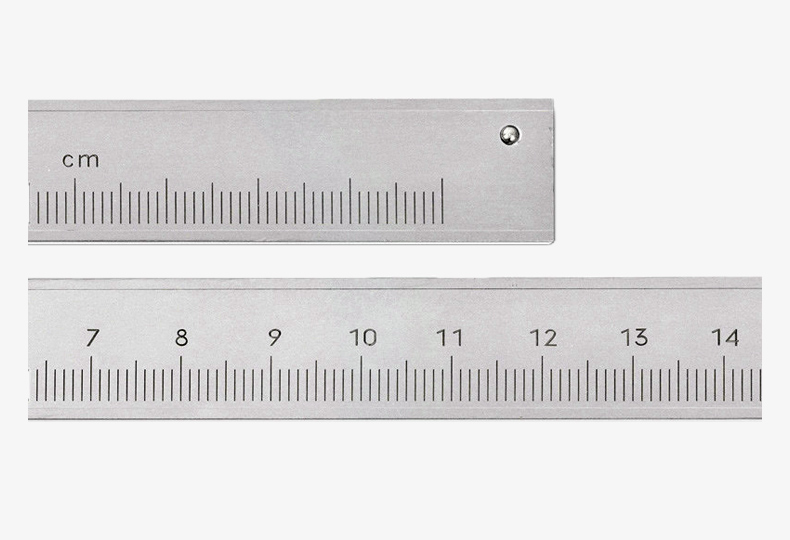

- <Durable Measuring Surface> Matte chrome with laser-scored lines. Matte chrome plating on the engraved surface of the main ruler and ruler frame, laser engraved lines, exquisite and durable. The scale of the vernier caliper is clear and the measurement is accurate.
Details

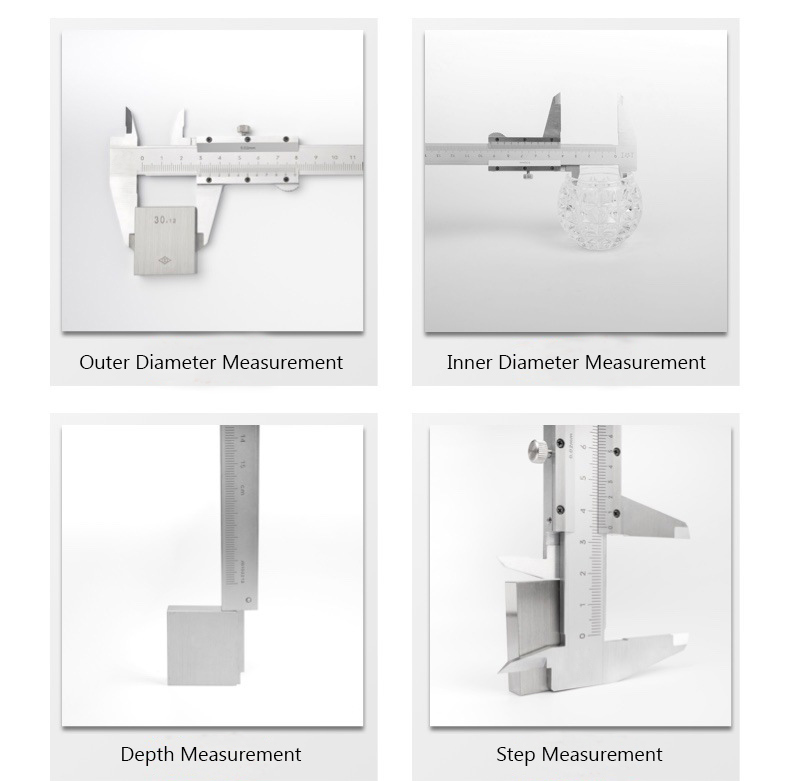

Applications
Vernier caliper is a measuring tool commonly used by fitters and equipment maintenance personnel. It can directly measure the outer diameter, inner diameter, thickness, width, depth and hole distance of parts. sisco mechanical vernier calipers are available with 0~100 mm, 0~200 mm, 0~300 mm...0~600 mm measuring ranges, which are widely used in science labs, medical purposes, steel industries, aerospace industries and education sector.
- Model: SISCO-VC-SG200
- Range: 0~200mm
- Weight: 810g
- Material: Carbon Steel
- Reading: 0.02mm
- Product Packaging: Plastic Box

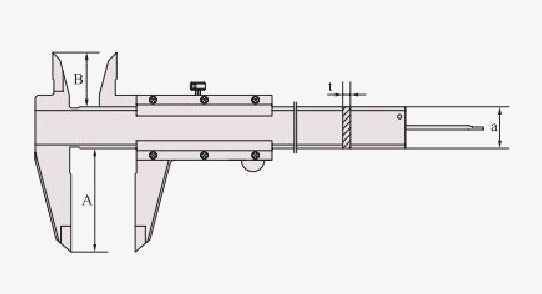

Dimension (Unit: mm)
| Range (mm) | 0~200 | Reading (mm) | 0.02 |
| a (mm) | 17 | t (mm) | 3.5 |
| A (mm) | 50 | B (mm) | 23.5 |
| Material | Carbon Steel | Remarks | Square depth rod |
Q1: What is a vernier caliper?
A1: Vernier caliper is a measuring tool for measuring length, inner and outer diameters, and depth. The vernier caliper is composed of two parts, the main ruler and the sliding vernier attached to the main ruler. The depth rod is connected to the vernier to measure the depth of the groove and cylinder.
Q2: What are vernier calipers used for?
A2: As a commonly used measuring tool, sisco vernier calipers can be specifically applied in the following four aspects:
- Measure the width
- Measuring the outer diameter
- Measuring the inner diameter
- Measure the depth
Q3: How does a vernier caliper work?
A3: Mechanical vernier caliper is a commonly used instrument for measuring length in the industry. It consists of a ruler body and a vernier that can slide on the caliper body. Viewed from the back, the cursor is a whole. There is a spring piece between the vernier and the caliper body, and the spring force of the spring piece is used to make the vernier and the caliper body close. There is a fastening screw on the upper part of the vernier, which can fix the vernier at any position on the body of the caliper.
Tips: How to choose a vernier caliper?
- The material of the vernier caliper should be stainless steel or carbon steel, so as to ensure that the caliper body has relatively strong wear resistance, and at the same time prolong the service life of the vernier caliper.
- The vernier caliper must have relatively high measurement accuracy in order to make the measurement data stable and reliable.
- sisco vernier caliper has a variety of ranges to choose from. Before purchasing, you need to know that you mainly want to measure the size range of the object, and the range of purchase needs to be slightly larger than the range of the measurement object.
