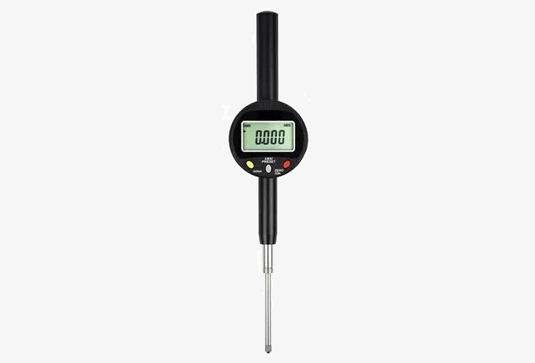

High quality digital depth gauge has a measuring range of 0-25.4mm with an accuracy of ±0.02mm and a repeatability of 0.01mm. The digital dial gauge is equipped with a data output port for easy transfer of measurement data to a computer or other equipment.
Extra large screen with clear display
- The digital dial indicator has a large screen that displays the measured values in digital form.
- The digital dial indicator is equipped with a data output for easy transfer of measurement data to a computer or other device.
- The digital dial indicator features a highly sensitive glass sensor for fast and accurate measurements.
- Digimatic indicator with absolute and relative measurement modes.
- Digital dial gauge housing is made of space-aluminium ceramic oxide technology and is durable and scratch-resistant.
- Digital indicators can be converted from metric to imperial in any position.
Application
Digital dial indicators are commonly used in the manufacturing industry for precision measurement tasks such as quality control, machine setup, and alignment. They are also used in the automotive industry for measuring engine components, brake rotors, and tire tread depth. Additionally, absolute digimatic indicators are useful in the field of engineering for measuring the deflection or deformation of materials under load.

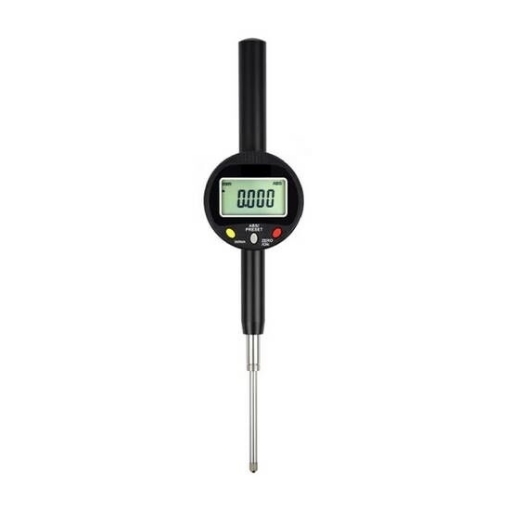

- Model: SISCO-SI-G350
- Range: 0-2 inch (0-50.8mm)
- Resolution: 0.0005 inch (0.01mm)
- Accuracy: ±0.02mm
- Repeatability: 0.01mm
- Sensor: Glass grid displacement sensor
- Display: LCD
- Response Speed: 1.5m/s
- Sleeve Diameter: Metric (ISO/GB): 8mm, Imperial (ANSI): 3/8 inch
- Measuring Rod Movement Speed: 1.5m/S
- Measuring Head: M2.5X0.45 threaded carbide
- Operating Temperature: 0-40°C
- Storage Temperature: -109C-60°C
- Battery: 3V CR2032 button cell: 2000 working hours, 0-5mm Battery: 3V CR1632 button cell

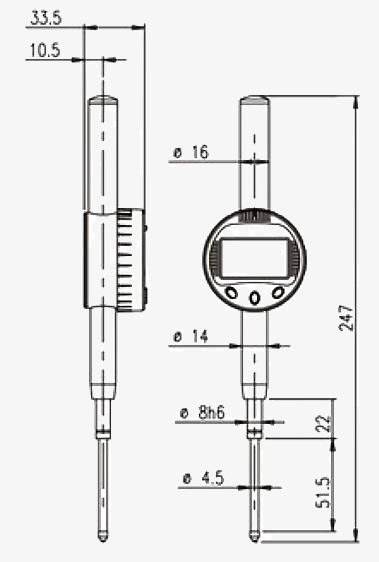

Dimension: (Unit: mm)
Q1: What is a digital dial indicator?
A1: A digital dial indicator is a precision measuring tool that is used to measure the distance or movement of an object with a high level of accuracy. It is a modern version of the traditional dial indicator that features an electronic display for easy and accurate reading.
Q2: How do I use a digital dial indicator?
A2: To use a digital dial indicator, first attach the probe to the object you want to measure. Then, turn on the device and zero the display by pressing the "zero" button. Finally, take your measurement by moving the object and observing the display.
Q3: How accurate is a digital dial indicator?
A3: The accuracy of a digital dial indicator can vary depending on the model and manufacturer. However, most modern digital dial indicators are designed to provide accuracy within 0.001 inches or 0.02 millimeters. It is important to calibrate the device regularly to ensure the highest level of accuracy.
Tips:Â Can I use a digital dial indicator in wet or dusty conditions?
It depends on the specific digital dial indicator you are using. Some digital dial indicators are designed to be used in wet or dusty conditions, while others are not.
If the digital dial indicator is specifically designed for use in wet or dusty conditions, it will likely have a higher level of protection against moisture and dust ingress. It may have a higher IP (Ingress Protection) rating, indicating that it can withstand exposure to water and dust. In this case, you can use the digital dial indicator in wet or dusty conditions without any problems.
However, if the digital dial indicator is not designed for use in wet or dusty conditions, it may be vulnerable to damage from exposure to moisture or dust. Using it in such conditions could result in inaccurate readings or even permanent damage to the device. In this case, you should avoid using the digital dial indicator in wet or dusty conditions.
To determine whether your digital dial indicator is suitable for use in wet or dusty conditions, you should consult the manufacturer's specifications and guidelines. These will provide information on the device's IP rating and any other features that make it suitable for use in harsh conditions.
