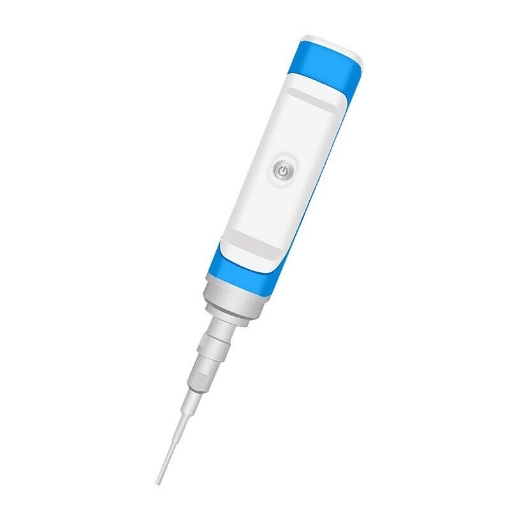

This handheld ultrasonic homogenizer allows continuous uninterrupted ultrasound, automatic frequency tracking and automatic resonance point and power control, eliminating the need for frequent manual energy adjustment.
Horn of ultrasonic homogenizer is made of titanium alloy material
- Titanium alloy material which has high strength, strong corrosion resistance and long service life.
- Frequency tracking and amplitude compensation adopt automatic mode, with stable load and high electro-acoustic conversion rate.
Mini ultrasonic homogenizer is portable and compact in structure
- It can be hand-held or can be fixed with a bracket.
- Metal stainless steel plug-in opening.
- Independent power supply, easy to carry.
Application
A mini handheld ultrasonic homogenizer is a laboratory instrument used for sample preparation in scientific research. It is a compact and handheld device. Mini handheld ultrasonic homogenizers are commonly used in various scientific and industrial applications for cell disruption, sample preparation, emulsification, and dispersion of nanoparticles.
- Model: HX-MINI-10
- Power: 100W
- Input Output: 100-230VAC
- Frequency: 30 KHz
- Capacity: 0.1-10 ml
- Optional Horn: 1.5, 2, 3, 6, 8 mm
- Horn Material: titanium alloy
- Single Ultrasound Time:Â <30 min
- Single Interval Time: 0.1-99.9s
- Operation mode:Â continuously
Q1: What is mini handheld ultrasonic homogenizer?
A1: A mini handheld ultrasonic homogenizer is a laboratory instrument used to disrupt, emulsify, and disperse samples in a variety of applications, such as cell disruption, nanoparticle synthesis, and homogenization of biological and chemical samples.
Q2: What are the three types of homogenizer?
A2: The three main types to consider when looking for the right homogenizer for your lab are: pressure, mechanical and ultrasonic homogenizers. They range in size from small handheld homogenizers to large industrial size homogenizers.
Q3: What is the working principle of ultrasonic homogenizer?
A3: Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse. This creates shear and shock waves which tear apart cells and particles.
Tips: Is a sonicator a homogenizer?
Ultrasonic homogenizers, commonly referred to as "sonicators", disrupt tissues and cells through cavitation and ultrasonic waves. Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse.
