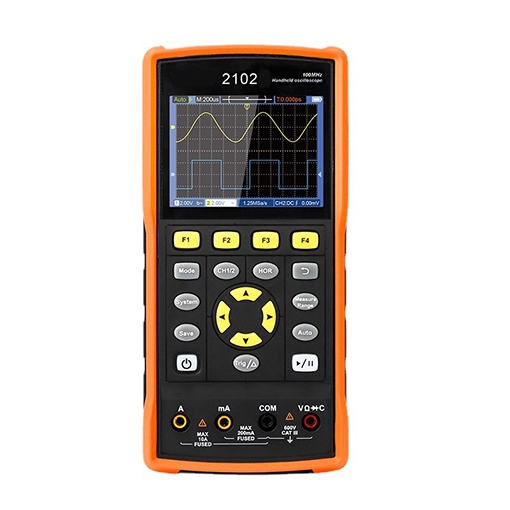

The digital oscilloscope multimeter has 2 in 1 function, built-in scope and multimeter, multiple measurement functions, and supports AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity test.
A digital oscilloscope multimeter with a battery has a large energy life.
- Using an 18650 lithium battery, the comprehensive power consumption is ≤3W.
- The digital multimeter can work continuously for about 6 hours.
Portable oscilloscope multimeter with comprehensive trigger modes
- Auto trigger: Automatically trigger periodic signals, such as sine waves.
- Normal trigger: Test digital logic signals, such as infrared remote control signals.
- Single trigger: Test sudden non-periodic signals, such as car ignition signals.

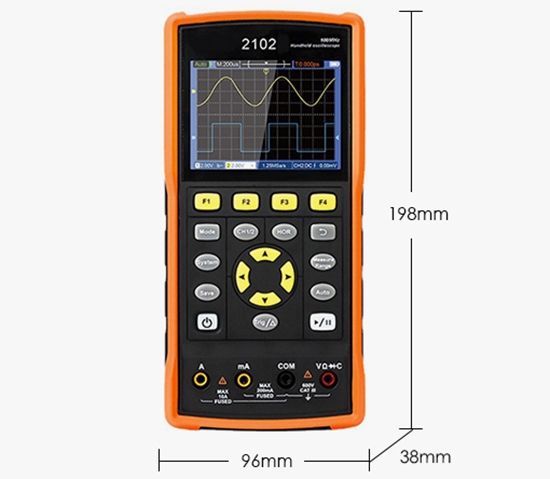

Dimension
Applications
SISCO oscilloscope multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Â
| Model | SISCO-OM-2102 | |
| Oscilloscope Technical Specification | ||
| Wideband | 100MHz | |
| Number of Channels | 2 | |
| Sampling Method | Normal, peak sampling | |
| Real-time Sampling Rate | 250MSa (dual channel), 500MSa (single channel) | |
| Record Length | Single Channel: up to 8k; Dual Channel: 4k | |
| Waveform Refresh Rate | 10000 wfms/s | |
| Input Coupling | DC, AC, ground | |
| Input Impedance (DC Coupling) | 1 MΩ±2%, in parallel with 16pF±pF | |
| Probe Attenuation Factor | 1X,10X, 100X, 1000X | |
| Time Base Range | 5ns/div~1000s/div, step by 1-2-5 | |
| Vertical Sensitivity | 10mV/div~10V/div | |
| Vertical Resolution | 8 bit | |
| Cursor Measurement | Voltage difference between cursors, time | |
| Automatic Measurement | Period/Frequency/Amplitude/Peak/Maximum/Minimum/Average | |
| Trigger Type | Edge trigger | |
| Trigger Mode | Auto, Normal, Single | |
| Multimeter Technical Specifications | ||
| Function | Range | Accuracy |
| DC Voltage | 200mV | ±(0.05%+5 dig) |
| 2V/20V/200V | ±(0.3%+3 dig) | |
| 1000V | ±(0.5%+2 dig) | |
| AC Voltage (V) | 200mV/2V/20V/200V | ±(0.8%+5 dig) |
| 750V | ±(1%+5 dig) | |
| AC Current | 200mA | ±(0.8%+2 dig) |
| 10A | ±(2.5%+2 dig) | |
| DC Current | 200mA | ±(1%+5 dig) |
| 10A | ±(2.8%+5 dig) | |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±(0.8%+3 dig) |
| 20MΩ | ±(1%+3 dig) | |
| 100MΩ | ±(3%+3 dig) | |
| Capacitance | 20nF/200nF/2㎌/20㎌ | ±(3%+3 dig) |
| 200㎌/2mF | ||
| Continuity test | √ | |
| Diode test | √ | |
| Auto range | √ | |
| True RMS | √ | |
Q1: What is an oscilloscope multimeter?
A1: An oscilloscope multimeter combines the functions of a digital multimeter (DMM) with those of an oscilloscope, allowing it to measure standard electrical parameters like voltage, current, and resistance, while also visualizing waveform signals for more detailed analysis of electrical behavior.
Q2: How does an oscilloscope multimeter differ from a regular digital multimeter?
A2: While a regular digital multimeter measures and displays numerical values for electrical parameters, an oscilloscope multimeter can also display real-time waveform signals, providing a visual representation of signal characteristics such as frequency, amplitude, and noise, which is crucial for diagnosing complex electrical issues.
Q3: How do I interpret the waveform display on an oscilloscope multimeter?
A3: Interpreting the waveform display involves understanding key parameters such as amplitude (peak voltage), frequency (repetition rate of the waveform), and shape (sine wave, square wave, etc.). The oscilloscope multimeter’s manual or user guide typically provides detailed instructions on how to read and analyze these waveforms.
Tips: What are the main applications of a 100MHz digital oscilloscope multimeter?
A 100MHz digital oscilloscope multimeter is highly versatile, combining the functionality of a digital multimeter with that of an oscilloscope capable of capturing signals up to 100MHz. This makes it ideal for a range of applications, including testing and debugging high-speed digital and analog circuits, analyzing communication signals, and ensuring signal integrity in electronic designs. The higher bandwidth allows for precise visualization of fast-changing signals, which is crucial for detailed analysis and troubleshooting. This tool is particularly beneficial in research and development, educational settings, and fieldwork, providing comprehensive measurement and diagnostic capabilities in a single, portable device.
