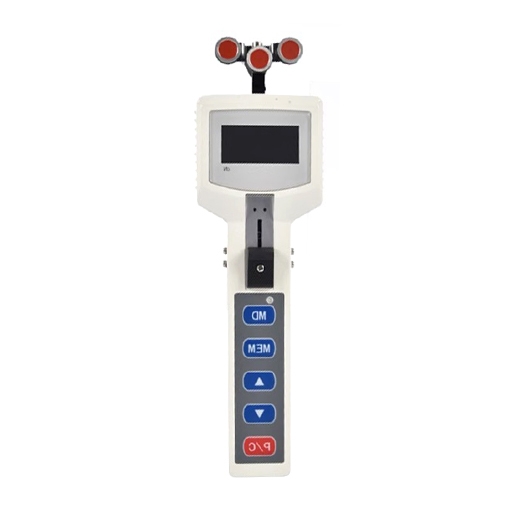

High-quality digital tensiometer for sale online. The handheld tensiometer is a portable electronic digital measuring instrument that can measure the tension of filamentary and linear materials. It is widely used in wire and cable, textile and chemical fiber, metal wire, carbon fiber and other industries.

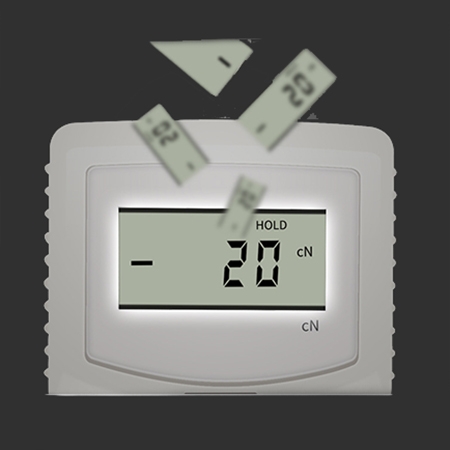

HD backlit screen display design
- Readings are clearly visible even in dark environments.
- Easier to use.
- 41 groups of storable data.

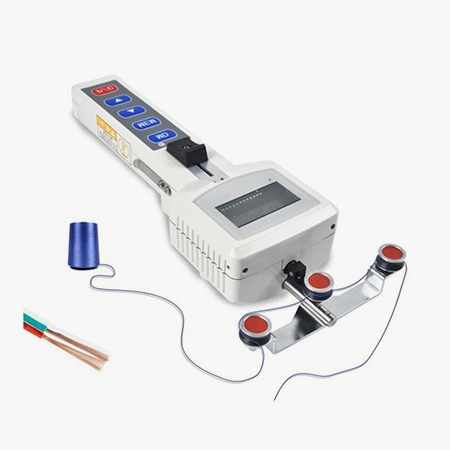

The digital tension meter can test the tension of ten different materials
- Real-time, hold, and peak three working modes can be switched at will.
- Six units can be set: cN, gf, OZ, Kgf, N, and lb.
- The accuracy is 0.5% of the full scale.
- The tension of 10 different materials can be accurately measured.
- The tension meter has thickness adjustment function.

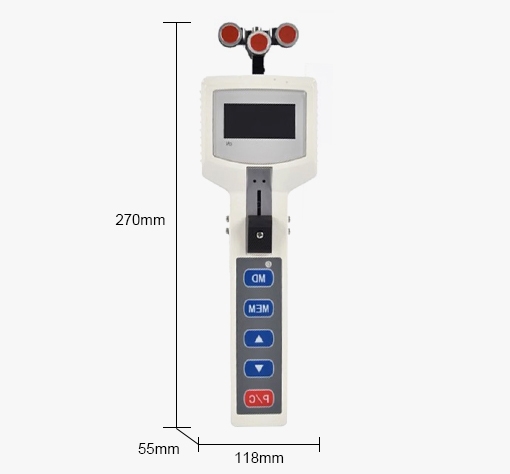

Dimension
Applications
SISCO tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. SISCO tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

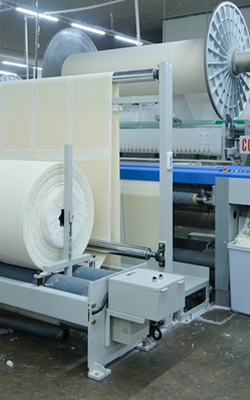

Textile

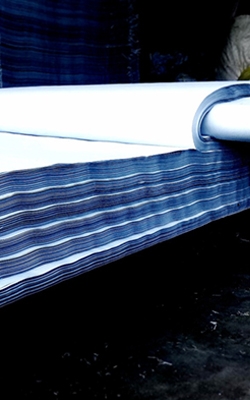

Paper

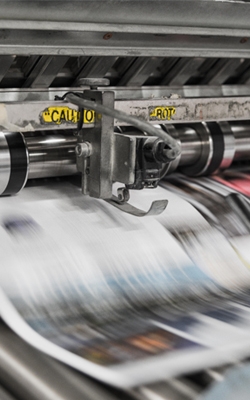

Printing
Automobile
| Model | SISCO-TM-AZSH-200 | SISCO-TM-AZSH-500 | SISCO-TM-AZSH-1000 | SISCO-TM-AZSH-2000 | SISCO-TM-AZSH-2500 | SISCO-TM-AZSH-5000 | SISCO-TM-AZSH-10K |
| Tension Range | 0.1-200 cN | 0.1-500 cN | 50-1000 cN | 200-2000 cN | 250-2500 cN | 50-5000 cN | 1-10 daN |
| Measuring Head Width | 65mm | 65mm | 65mm | 65mm | 116mm | 116mm | 116mm |
| Calibration Material Textile PA Monofilament | φ0.12mm | φ0.12+0.2 mm | φ0.2+0.4 mm | φ0.4+0.7 mm | φ0.4+0.7 mm | φ0.6+1.2 mm | φ0.8+1.4 mm |
| Units | cN, gf, OZ, Kgf, N, and lb | ||||||
| Power Supply | 3.7V lithium battery*2 | ||||||
| Dimension | 270*118*55 mm | ||||||
| Weight | 640g | ||||||
Q1: What is a tension meter?
A1: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models. Single-roll tension sensors and sonic tension meters are other types of tension meters. Tension may also be inferred from the frequency of vibration of the material under stress by solving the "Vibrating String Equation". Tension meters are available as handheld devices or as equipment for fixed installations. These are basically necessary to build up a tension-controlled closed loop.
Q2: What is the purpose of the tension meter?
A2: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models.
Q3: How does a tension meter work?
A3: Tension meters measure the dynamic tension in a moving yarn and regulate the tension of the yarn on a winding machine. Tension sensors are dynamic tension devices. The piezoelectric element mounted on a flexible beam is the most important part of tension sensors.
Tips: What is a digital tension meter?
A digital tension meter is an instrument used to measure the tension or force exerted by wires, cables, belts, fibers, or other materials. It provides precise measurements and displays the tension digitally for easy readability. These meters are commonly used in various industries, including manufacturing, textiles, cable and wire production, and machinery maintenance, to ensure that materials are under the correct tension for optimal performance and safety. Digital tension meters typically use a load cell or strain gauge to detect the force and convert it into an electrical signal, which is then processed and displayed on a digital screen.
