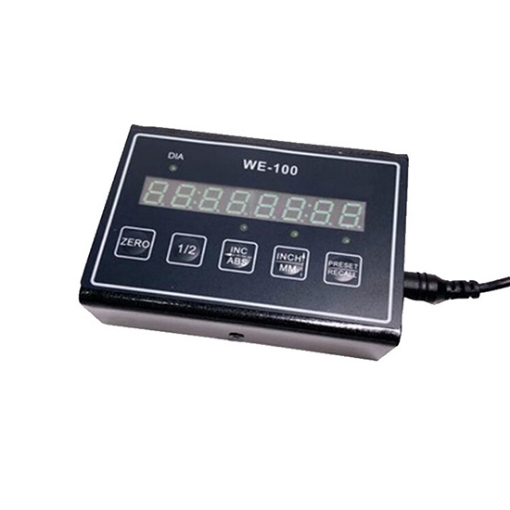

The precision 1 axis digital readout can be mounted on virtually any surface, providing the user with accurate linear measurement capability, an LCD readout display, and an output function for recorded data.

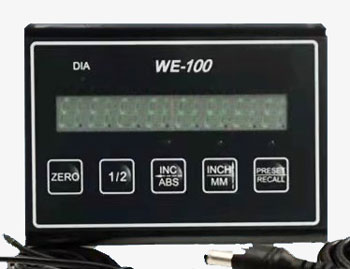

Quality panel keys
- Digital readout with high brightness digital tube, clear digital display.
- Durable touch key panel with key operation sound indication.

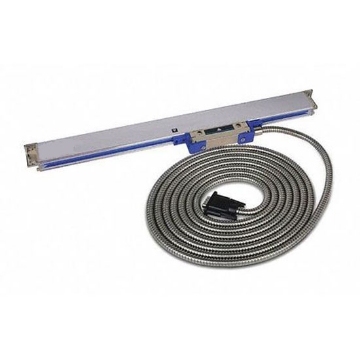

- Digital readout can be connected to a scale or encoder, which can meet the needs of various machine tools.
Compact appearance and lightweight

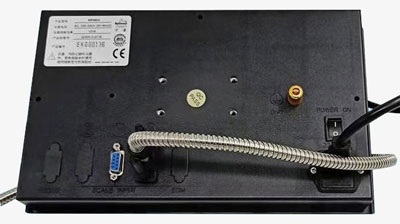

- RS-23 output function outputs the current scale display value to the computer.
- Strong anti-interference capability.
- 24-bit dedicated counting IC, counting speed up to 4m/s at 0.001mm resolution.
Application

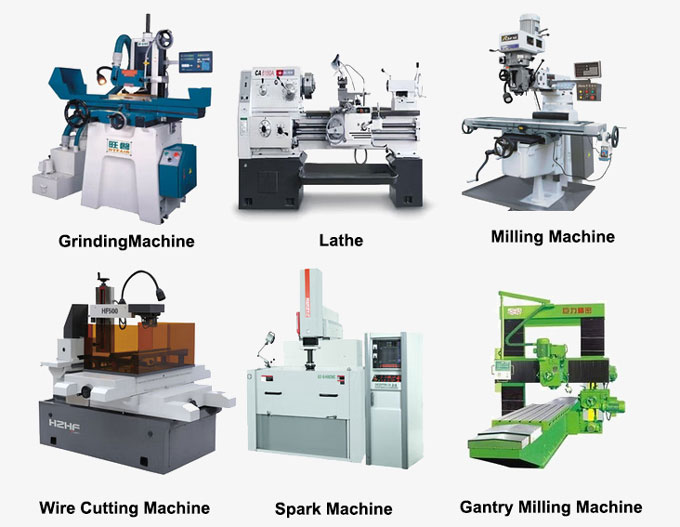

The digital readout can be connected with a grating ruler or encoder, and is used in lathes, milling machines, grinding machines, boring machines, drilling machines, wire cutting, spark machines, etc.
| Model | SISCO-DR-WE100 | ||||||||
| Axis number | 1 Axis | ||||||||
| Resolution | 0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm | ||||||||
| Input Signal | TTL, Frequency < 2MHZ, Current > 1mA | ||||||||
| Input Voltage Range | DC 9V | ||||||||
| Power | Less than 10W | ||||||||
| Max Measuring Length | 900mm | ||||||||
| Frequency | 50 Hz - 60 Hz | ||||||||
| Anti Interference Capability | Over 2200V | ||||||||
| Dimension | 104mm x 77mm x 31.5mm | ||||||||

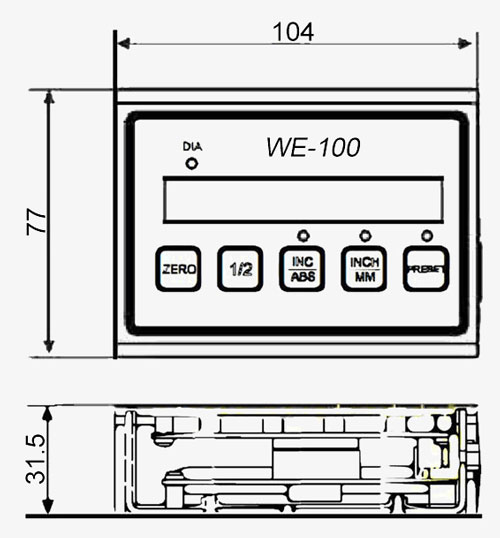

Dimension (unit: mm)
A1: What does DRO stand for in CNC?
Q1: In machine shop terminology, a complete digital readout system (consisting of a computer, an axis position encoder, and a digital display) is represented by the acronym DRO.
A2: What is a digital readout system?
Q2: The Digital Readout (DRO) system is used to indicate the position of the cutting tool in relation to the workpiece. The position is detected by an encoder mounted on the shaft. They have a digital display and a keypad. DRO systems are used on milling and boring machines, lathes, and surface grinders.
A3: What are the advantages of digital readout?
Q3: Digital readout is powerful, fast frequency response can be directly on the raster digital display table for function calculation and convenient processing. Die-casting alloy shell, surface electric spraying treatment, dustproof and wear-resistant, good shielding. Raster digital display table professional design independent power supply, adapt to a wide range, high stability, strong anti-interference ability. The high-quality and durable key panel, easy and convenient to replace.
Tips: Application of digital display system of the linear scale
The liear scale digital display system is mainly used in linear moving guide mechanisms, can realize the accurate display and automatic control of moving amount, and has been widely used in machine tool processing and precision measurement of instruments. At present, the grating digital display table has formed a variety of series, complete varieties, exquisite production, sophisticated technology, can be used for different specifications of various types of machine tools, instruments digital transformation, but also according to the user's special needs for special production.
