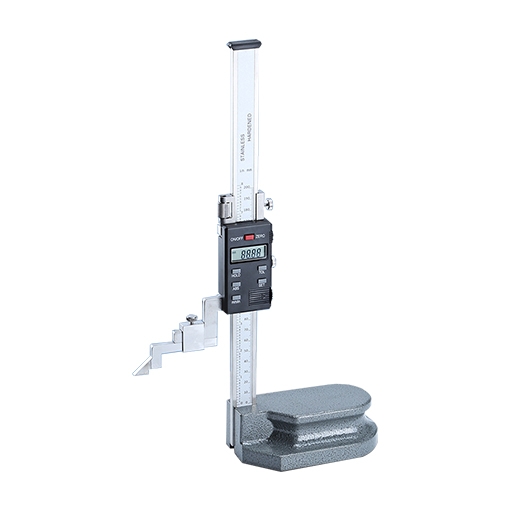

    0-200mm Digital Height Gauge, 0.01mm

    High precision digital height gauge for sale online with a measuring range of 0-200mm, resolution 0.01mm. The electronic digital height gauge is designed with a heavy stainless steel base on the standing feet so it would more stable.
    SKU: SISCO-DHG-200
    $417.14
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO digital height gauge with the error ±0.04mm, 0-200mm measuring range. This digital vernier height gauge is made from 4CR13 stainless steel, has high strength, wear resistance and durability and has a long service life.

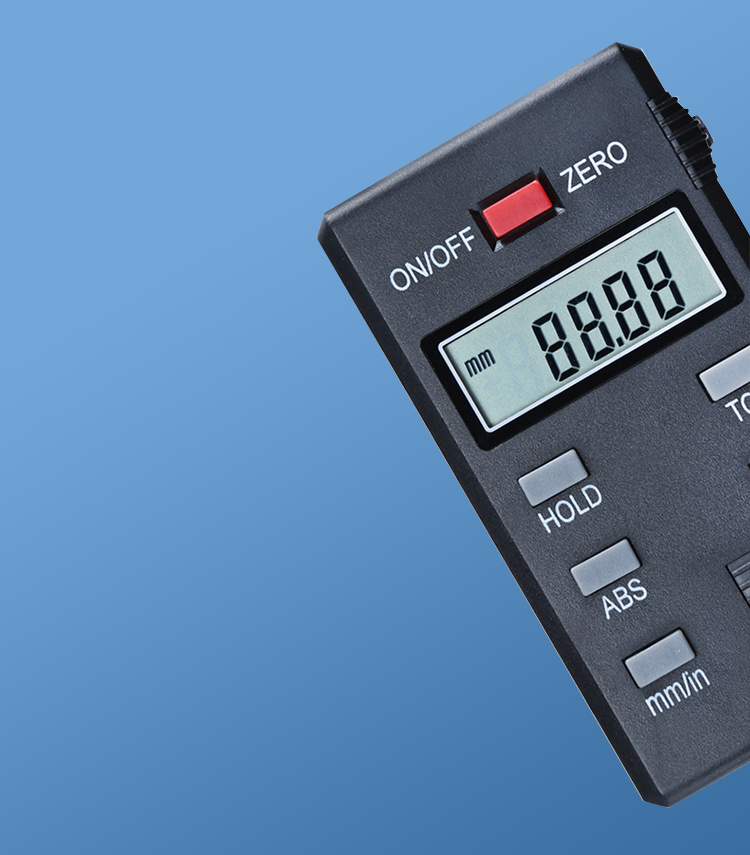

    Digital height gauge detail

    Large screen digital display design

    • LCD high-definition LCD screen, the numbers are clear and easy to read
    • Comfortable in hand and full of functions

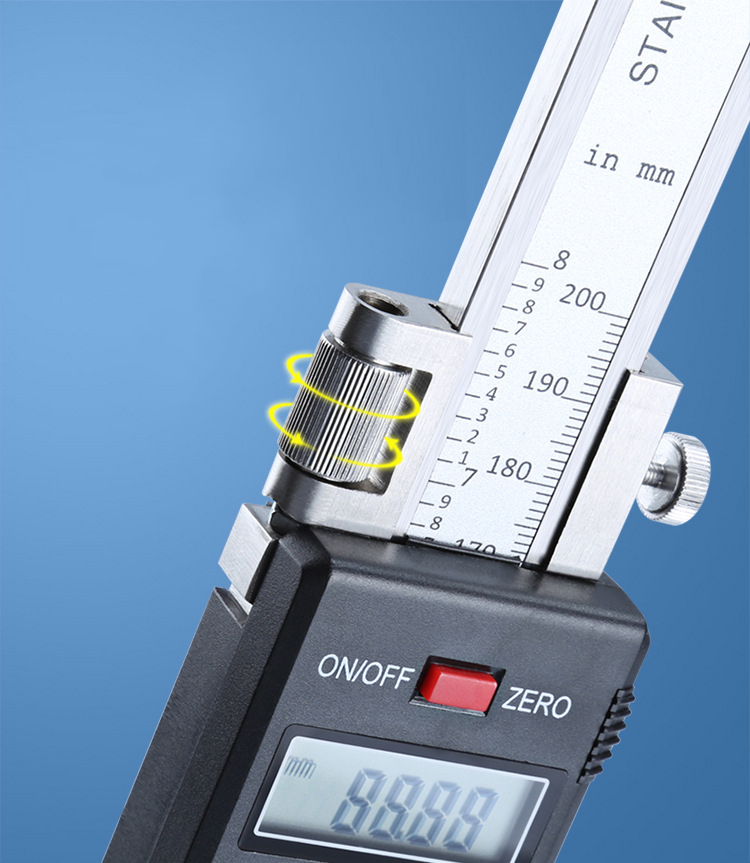

    Digital height gauge detail

    Precise fine-tuning device

    • Toggle mechanism for more precise values
    • High-definition scale film, dual display in metric and imperial


    Detail

    Digital height gauge structure

    Applications

    SISCO digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Digital height gauges are mainly used in the automotive industry, manufacturing, science, and research industries.

    Digital height gauge application

    Specs
    • Model: SISCO-DHG-200
    • Range: 0-200mm
    • Voltage: 1.5V
    • Resolution: 0.01mm
    • Error: ±0.04mm
    • Responding Speed: 1 m/s
    • Body Material: 4CR13 stainless steel
    • Battery Type: LR44 button-type
    • Weight: 26kg

    Dimension

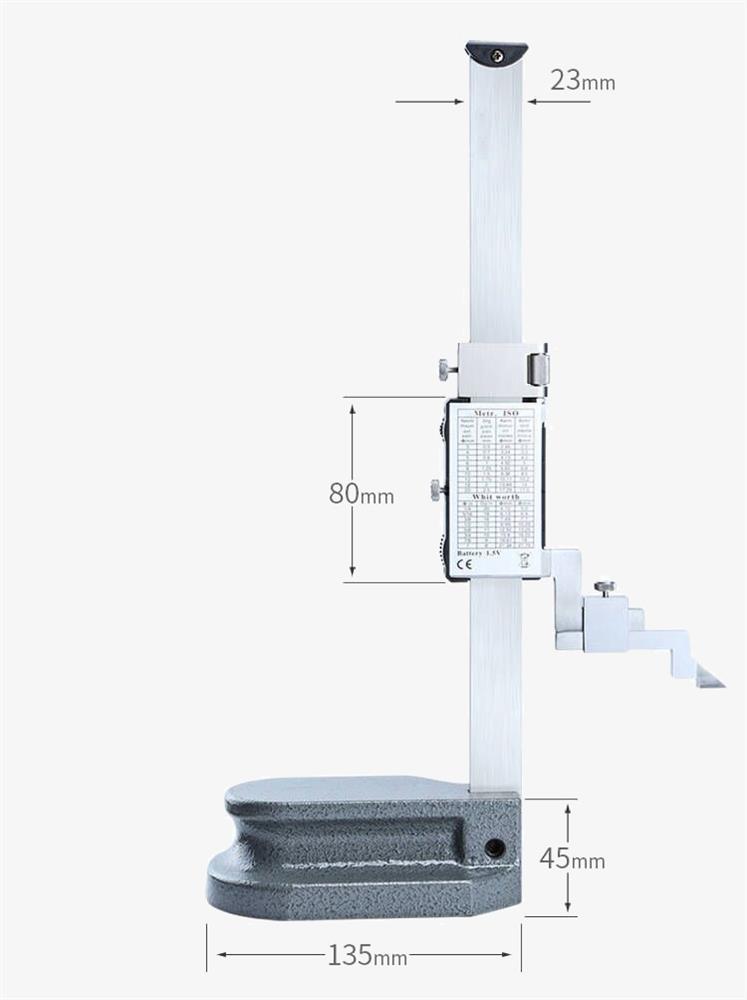

    Digital height gauge dimension

    FAQs

    Q1: What is a digital height gauge?
    A1: A height gauge is one of the most used accuracy and precision tools in different industries. Some of these industries are manufacturing, automobile, metalworking, and healthcare. Typically, they’re used in production stages, such as in cutting and marking raw materials. In some cases, height gauges are utilized in quality control to check if products have met particular standards.

    Q2: Is the digital height gauge accurate?
    A2: Standard height gauges provide readings accurate to one-hundredth of an inch, but precision-engineered digital height gauges can determine accurate measurements up to the thousandth of an inch and beyond.

    Q3: Why do we use digital height gauges?
    A3: A digital height gauge is used for measuring the height of objects. Vernier height gauges are used in metrology and metalworking to detect or measure vertical distances. The height gauges are often used to measure a granite surface or scribe part features from a datum plane.

    Tips: Precautions for using a digital height gauge

    1. Keep the column and the slider, clean. That makes measurement easier.
    2. When sliding the Slider securely locks should be off. And remember to ON when the required slider is at rest position.
    3. Set Zero first, If the main scale of the height gauge can be moved, move it as required to set the zero point, and securely tighten the fixing nuts to make it fixed.
    4. Errors due to parallax errors are not negligible. When reading a value, always look straight at the graduations.
    5. You should avoid direct sunlight, high temperatures, low temperatures, and high humidity during storage. If a digital height gauge will not be used for more than three months, remove the battery before storage.



    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
