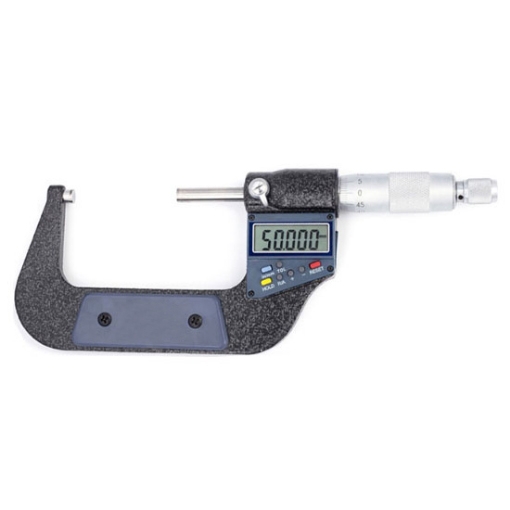

    Digital Micrometer, 2~3 Inch Range, 0.0001 Inch Accuracy

    The digital micrometer screw gauge has a range of 2 inch to 3 inch (50~75mm), an accuracy of 0.0001 inch (0.003mm), a large LCD display for easy reading, mm/inch conversion, and data hold function. The digital micrometer has a carbide grinding anvil and spindle for added durability and accuracy.
    SKU: SISCO-DM-N775
    $179.86
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    The digital outside micrometer for sale, micrometer is accurate to 0.0001 inch with a range of 2 to 3 inch, measures in metric and inches and provides digital readings on a clear LCD screen. This digital micrometer screw gauge is not only suitable for home use, but can also be used in a professional environment.

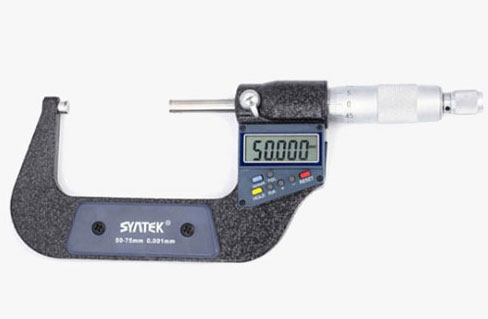

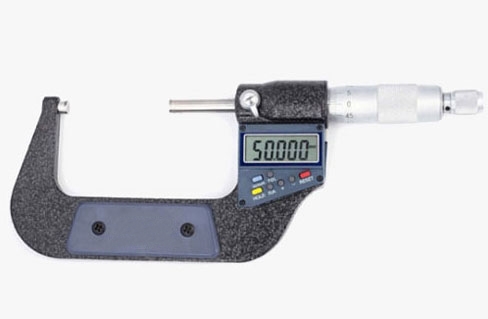

    Digital blade micrometer details

    Accurate measurement, efficient and stable

    • Electronic digital display, resolution 0.001mm.
    • Multifunctional digital micrometer with digital display and scale display, which can be read even without power.
    • Accurate measurement tolerance ≤ ±0.002mm.
    • Large digital display ABS home measuring point, no need to repeatedly clear zero.

    Application


    Digital micrometer is widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts, digital micrometer measurement of materials are mainly hardware and plastic.

    Digital outside micrometer applications

    Specs
    Model SISCO-DGN7-5075
    Digital Display Scale Digital display + scale
    Range 50~75mm (2~3 inch)
    Resolution 0.001 mm (0.00005 inch)
    Accuracy ±0.003mm (0.0001 inch)
    Metric to English Conversion Yes
    Home Position Measurement Yes
    Data Hold Yes
    Power Supply LR44 button cell
    Out of Tolerance Alert Yes
    Scale Body Quality High quality steel
    Product Process Surface spraying
    Scale Process Laser scale
    Packaging Drop-proof blow mold box


    Set zero
    Digital outside micrometer zeroing method

    1. Wipe the probe measuring
    2. Probe closure
    3. Lock the screw with the stopper
    4. Use a wrench to pull the fixing sleeve until the zero line is aligned
    FAQs

    Q1: Is the sisco digital micrometer accurate?
    A1: sisco digital micrometers can display accurate measurements in small ranges. Advanced and more accurate models can easily measure distances down to 0.001mm. This accuracy when measuring small objects translates into accuracy for the entire project being carried out.

    Q2: What is a digital micrometer?
    A2: The digital micrometer is the outside diameter micrometer that uses electronic measurement, digital display, and the principle of the spiral sub to read the distance between the two measuring surfaces on the ruler frame.

    Q3: What are the ranges of sisco digital micrometers?
    A3: sisco digital micrometer has 4 ranges available: 0-25mm (0~1 inch), 25-50mm (1-2 inch), 50-75mm (2~3 inch), and 75-100mm (3~4 inch).

    Tips: How to calibrate the digital micrometer?

    1. First test the micrometer is normal, in check whether the micrometer is zeroed, if not zeroed is required to adjust the zeroing.
    2. Then we should take a clean cloth to wipe the sides of the micrometer to avoid unnecessary errors.
    3. Micrometer is generally measured 4-5 points, low range, range and limit range.
    4. Wipe the standard block with a clean cloth, in the measurement, measurement in the record after a good value, repeated 3-5 times can be.
    5. After that in the value of the comparison, comparison after the value is not in the error range is not qualified digital micrometer.
    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
