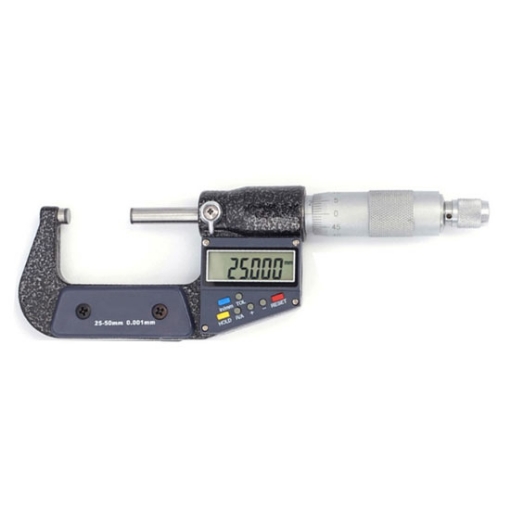

    Digital Micrometer, 1~2 Inch Range, 0.00007 Inch Accuracy

    Digital outside micrometer for sale, range 1 inch to 2 inch, with high definition LCD and scale display, accuracy 0.00007 inch, fine adjustment ratchet which helps to reduce the use of resistance.
    SKU: SISCO-DM-N750
    $178.94
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Digital outside micrometer has metric to imperial conversion, ABS comparison measurement, data hold function, range 1 inch ~ 2 inch, accuracy 0.00007 inch, digital display resolution 0.00005 inch. sisco digital micrometer is the ideal tool for measuring precision mechanical parts.

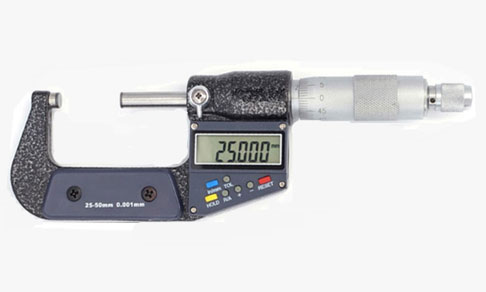

    Multifunctional digital micrometer

    Accurate measurement, efficient and stable

    • Electronic digital display, resolution 0.001mm.
    • Multifunctional digital micrometer with digital display and scale display, which can be read even without power.
    • Accurate measurement tolerance ≤ ±0.002mm.
    • Large digital display ABS home measuring point, no need to repeatedly clear zero.

    Application


    Digital micrometer is widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts, digital micrometer measurement of materials are mainly hardware and plastic.

    Digital outside micrometer applications

    Specs
    Model SISCO-DGN7-2550
    Digital Display Scale Digital display + scale
    Range 25~50mm (1~2 inch)
    Resolution 0.001 mm (0.00005 inch)
    Accuracy ±0.002mm (0.00007 inch)
    Metric to English Conversion Yes
    Home Position Measurement Yes
    Data Hold Yes
    Power Supply LR44 button cell
    Out of Tolerance Alert Yes
    Scale Body Quality High quality steel
    Product Process Surface spraying
    Scale Process Laser scale
    Packaging Drop-proof blow mold box


    Set zero
    Digital outside micrometer zeroing method

    1. Wipe the probe measuring
    2. Probe closure
    3. Lock the screw with the stopper
    4. Use a wrench to pull the fixing sleeve until the zero line is aligned
    FAQs

    Q1: Is the sisco digital micrometer accurate?
    A1: sisco digital micrometers can display accurate measurements in small ranges. Advanced and more accurate models can easily measure distances down to 0.001mm. This accuracy when measuring small objects translates into accuracy for the entire project being carried out.

    Q2: What is a digital micrometer?
    A2: The digital micrometer is the outside diameter micrometer that uses electronic measurement, digital display, and the principle of the spiral sub to read the distance between the two measuring surfaces on the ruler frame.

    Q3: What are the ranges of sisco digital micrometers?

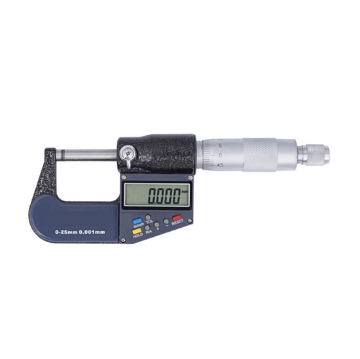

    A3: sisco digital micrometer has 4 ranges available: 0-25mm (0~1 inch), 25-50mm (1-2 inch), 50-75mm (2~3 inch), and 75-100mm (3~4 inch).

    Tips: How to use a digital micrometer screw gauge?

    1. According to the different tolerance levels of the parts, the correct and reasonable use of a digital micrometer is.
    2. Before using a digital micrometer screw gauge, first, use clean gauze to clean the micrometer, and check whether its parts are flexible and reliable, that is, check the micrometer cylinder rotation and micrometer screw movement should be smooth. If it is a digital micrometer scale to see whether the display shows the number of normal or no jumping phenomena.
    3. Check the zero position, turn the differential cylinder two measuring surfaces gently contact no light leakage, then the differential cylinder on the zero line should be align with the fixed casing, the end face of the cone of the differential cylinder should be tangent to the fixed casing zero line.
    4. If not to zero position, then use clean paper to mop clean the measuring surface; or hexagonal wrench to turn the fixed casing so that the zero point and the mark line alignment, and then the fixed casing in the fixed casing in the fixed screw lock. Digital micrometer then press the function key "0" button. Here return to zero also with each person's operating strength.
    5. In the measurement before, if the parts are dirty, the parts must be measured surface wipe clean, so as to avoid dirt affecting the measurement results.
    6. When measuring, make the axis of the micrometer screw and parts measured in the same direction, not tilted; then turn the differential cylinder, when the measuring surface will be in contact with the parts, should be changed to turn the ratchet that is the force measuring device, until the ratchet issued a "click" sound. After the ratchet makes a "click" sound, then the reading can be taken. At this time it is best to read directly about the measured parts.
    7. When reading the application of the locking device measurement, make the micrometer screw axis and parts measured in the same direction, not tilted; then turn the micrometer cylinder, when the measuring surface will be in contact with the parts, should be changed to turn the ratchet wheel that force measuring device, until the ratchet wheel issued a "click" sound, then you can read the number. At this time it is best to read directly about the measured parts. If you must take down the micrometer readings when the application of locking devices to lock the micrometer screw and then gently slide out of the micrometer.
    8. Measure the larger workpiece, and the conditions of the workpiece can be placed on the V-shaped block or flat, using the two-handed operation method, with the left hand holding the ruler frame insulation device, and the right hand rotating the force measuring device cap.
      Measurement, to pay attention to the influence of temperature, to prevent hand temperature or other sources of heat influence hand must be held at the location of the heat insulation device, in order to avoid the measurement of the body temperature to the micrometer so that the temperature of the micrometer and the temperature of the measured piece is not consistent and producing large measurement errors.
    9. Do not allow the measurement of abrasive surfaces, rough surfaces, and burrs with the edge of the surface, not to mention the measurement of the workpiece in motion.
    10. Do not put the micrometer on the sliding place, or by the vibration table.
