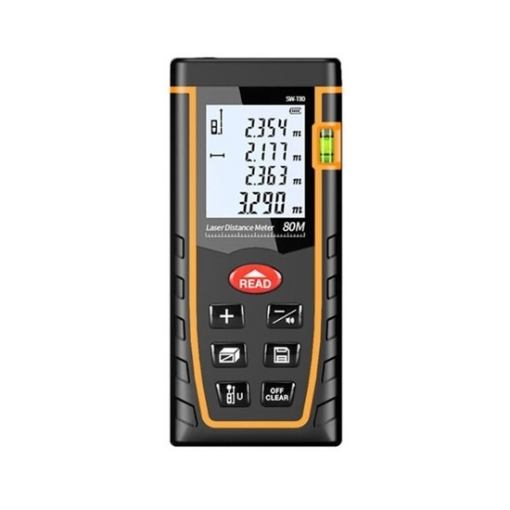

Hot selling high-quality digital laser meter with the longest measuring distance of 120m, which has large backlit display, storage of 30 groups of data. Digital laser meter is the best choice for rooms, apartments, buildings, factories, warehouses.

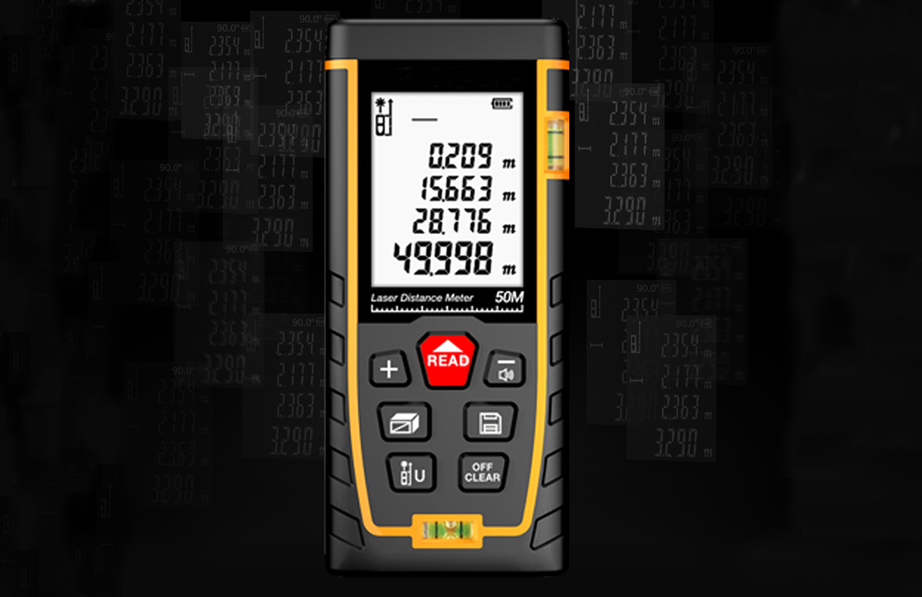

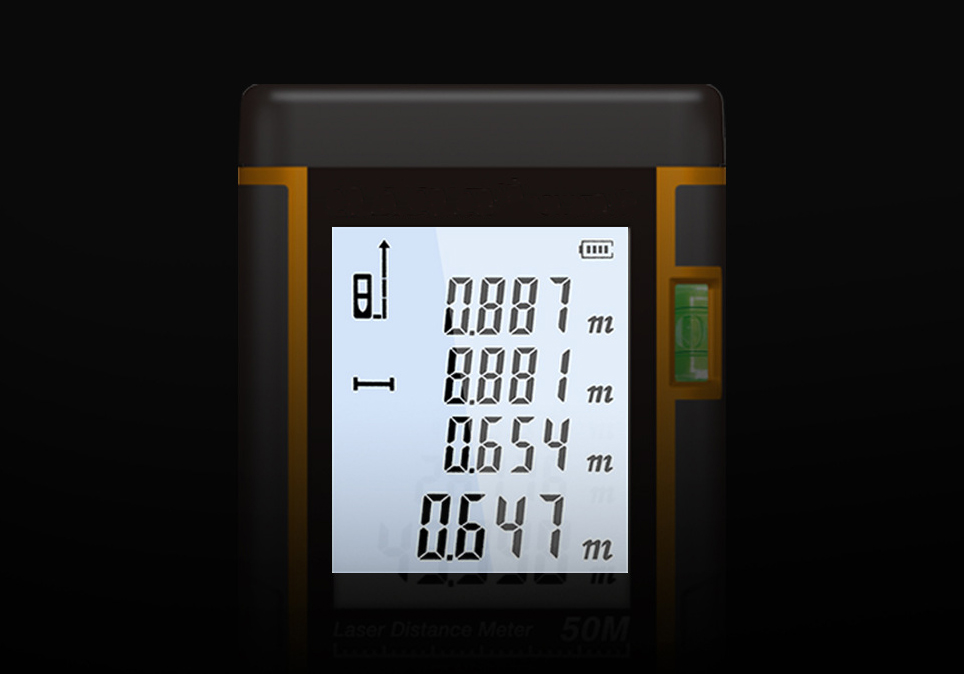

HD backlight design
- Convenient to use in the dark environment
- Using more comfortable and convenient
30 sets of data storage
- Save at any time
- View and compare at any time
Dimension Unit (mm)
Application
Laser distance meter is widely used in terrain measurement, battlefield measurement, ranging of tanks, aircraft, ships and artillery to targets, measuring the height of clouds, aircraft, missiles and artificial satellites, etc. It is an important technical equipment to improve the accuracy of high tanks, aircraft, ships and artillery. As the price of laser distance meter continues to drop, industry is also gradually starting to use laser distance meter, which can be widely used in industrial measurement and control, mining, ports and other fields.
| Basic Specification | |
| Model | SISCO-DM-T40 |
| Laser measure | 40m (131Ft) |
| Accuracy | ±2mm |
| Laser Leve | Ⅱ |
| Laser Type | 635nm, < 1mW |
| Automatically Cut Off Laser | 20s |
| Automatic Shutdown | 150s |
| Storage Temperature | -20°C-60°C |
| Working Temperature | -0°C-40°C |
| Storage Humidity | 20%~ 80%RH |
| Battery | 1.5V 2*AAA |
| Battery Life | 8000 times for single measurement |
| Weight (including battery) | 110g |
| Dimension | 112* 50* 25mm |
| Certificate | CE |
| Functions | |
| Continuous Measurement Function | Yes |
| Max Storage | 30 Units |
| Area Measurement Function | Yes |
| Volume Measurement Function | Yes |
| Pythagorean Proposition Measurement Function | Full mode |
| Add and Subtract Measurement Function | Yes |
| Min/Max Value | Yes |
| Automatic Backlight | Yes |
| Buttons/Keys Sound | Yes |
Packing List
- 1 x Package color box
- 1 x Rangefinder mainframe
- 1 x Portable cloth bag
- 1 x Portable lanyard
- 2 x 7# dry battery
- 1 x Reflective plate
- 1 x Instruction manual
- 1 x Certificate of Conformity
How to change the unit and calibrate a laser distance meter?
sisco 40m range laser distance meter is a portable tool with seven single buttons and in the center is the measurement taking button.
Press Read Button to switch on the device which beeps twice shortly. Long press button OFF/Clear for 3 sec to turn the device off. It also comes with an auto power off function. It will be shut off when there is no operation in 150 sec.
Q1: Is laser distance meter accurate?
A1: The laser measure is accurate to within 1/8" and measures to 50 feet. It makes this measuring tool more accurate, easier and faster than a tape measure.
Q2: How do I choose a laser distance meter?
A2: Most lasers measurers are easy to fit into the palm of your hand, but some are bigger than others. If you have small hands and want a small unit that is easily controlled, or if you have big hands and need a larger laser for ease of use, check on the exact size of any model you are considering.
Q3: Do laser distance meter work outside?
A3: If you work outside, an optical scope or digital point finder is a must. Without a scope or a point finder, you can see a laser point at a maximum distance of about 30 feet on a bright day. Chances are, if you are measuring outside, 30 feet isn't going to cut it.
Tips: How far can a laser distance meter work?
Laser distance meter measures are alternatives to traditional metal tape measures; they're used to calculate lengths, widths and heights of up to about 650 feet (198 meters). They're generally considered accurate to within an eighth of an inch (3 millimeters) when measuring a distance of up to 300 feet (91.5 meters).
