    Flexible Current Transformer, 3000A/6000A AC, 12mm

    The flexible current transformer is composed of integrator and coil, with a response bandwidth of 0.1Hz-1MHz, range AC 0A~3000A/6000/10000A AC, coil diameter Φ7.5mm or Φ12mm optional. Flexible current transformer with integrator allows more convenient integration into other test equipment, such as power quality analyzer, harmonic analyzer, power parameter recorder, phase detection analyzer, etc.
    SKU: SISCO-FCT-312
    *
    *
    *
    $271.87
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    flexible current transformer with integrator, range 3000A/6000/10000A AC, coil length can be customized, suitable for relay protection, silicon controlled rectification, frequency regulation semiconductor switch, arc welding and other industrial environments with severe signal distortion.

    Flexible current transformer

    Flexible and convenient to meet various needs

    • Separate integrators can be equipped with various specifications of flexible coils, flexible and convenient to meet various needs.
    • Non-contact measurement is safe and reliable. Wide measurement range, high accuracy, high reliability, and wide response band.
    • The integrator is small and light in weight, and the flexible coil is soft and flexible, suitable for narrow environments and places with dense rows of wires, as well as for measuring conductor currents of large size or irregular shape.
    • sisco flexible current transformer is suitable for relay protection, silicon-controlled rectification, frequency regulation semiconductor switch, power electronic conversion equipment, arc welding, and other industrial environments with serious signal distortion.
    • Flexible current transformer coil diameter and length are available for customization.


    Application

    Flexible current transformers are an indispensable accessory for small, medium, and large electronic companies. The sisco flexible current transformer is suitable for use in power equipment testing, communications and telecommunications, railway and oilfield monitoring, building and construction companies, research and teaching units, industrial and mining records, and other fields.

    Clamp-on current transformer applications

    Specs
    Model SISCO-ETCR001F
    Measuring Range AC 0A~3000A/6000A/10000A (optional)
    Coil Diameter φ7.5mm/φ12mm (optional)
    Coil Inner Diameter φ40~φ3000mm (optional)
    Power Supply Zinc-manganese dry cell 6F22 9VDC (external power supply available)
    Resolution 1A/2A/3A
    Accuracy Level 1%FS (50Hz/60Hz; 23°C to 2°C, below 70%RH, wire in the center of the coil)
    Phase Error ≤1°(50Hz/60Hz; 23°C to 2°C)
    Signal Output Full scale output AC0~ 1V
    Integrator Size 103mm x 65mm x 26mm
    Integrator Mass Approx. 205g
    Integrator Output Connector 3.5mm audio plug/BNC connector/bare wire
    (optional)
    Integrator Output Cable Length 2m
    Electric Field Interference No hysteresis effect, no external electric field interference
    Wire Position The test wire is in the center of the coil, position error ≤ 0.5% FS
    Current Frequency 45Hz~70Hz (measured current frequency)
    Response Frequency 0.1Hz ~ 1MHz
    Line Voltage AC 600V or less line test
    Random Accessories Flexible coil x 1, integrator x 1, 6F229V battery x 1

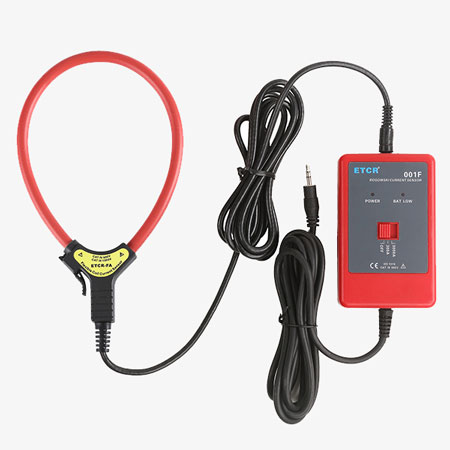

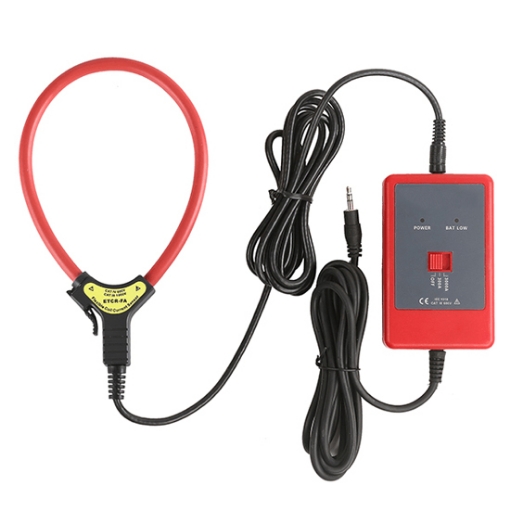

    Integrator Output Connector


    Flexible current transformer integrator output connector

    FAQs

    Q1: What is a flexible current transformer?
    A1: A flexible current transformer is an AC current sensor consisting of a toroidal coil uniformly wound on a non-ferromagnetic material and an integrator. The output signal is the differentiation of current against time and can be directly applied to the conductor being measured to measure AC current.

    Q2: What are the advantages of flexible current transformers?
    A2: Flexible current transformers are essentially just a pair of cables, allowing you to easily reach even the tightest sections. This feature is also particularly handy when you are working in high places. The design of the flexible current transformer eliminates the risk of encountering a secondary open circuit. As a result, the risk of electrocution or transformer overload is mitigated. Of course, this doesn't mean you can be lax about safety procedures, but it does provide a sense of security when working.

    Q3: What are the wiring methods of current transformers?
    A3: There are two types of current transformer wiring, the first is the use of two current transformers two-phase V-shaped wiring and two-phase current differential wiring, and the second is the use of three current transformers three-phase Y-shaped wiring, three-phase triangle wiring, and zero sequence wiring.

    Tips: What are the advantages of sisco current transformers compared to conventional ones?

    Better accessibility

    Traditional current transformers are by nature bulky, which can pose a problem when you have to tap into circuits in tight spaces. Flexible current transformers, on the other hand, are essentially just a pair of cables, allowing you to easily reach even the tightest sections. This feature is also particularly handy when you're working in high places.

    Better safety

    The design of flexible current transformers eliminates the risk of encountering secondary open circuits. As a result, the risk of electric shock or transformer overload is mitigated. Of course, this doesn't mean you can be lax about safety procedures, but it does provide a sense of security when working.

    Overall, flexible current transformers offer a wealth of benefits but facilitate an easier transition with the same features as traditional current transformers. New isn't always better, but in the case of flexible current transformers, they are definitely worth the transition.
