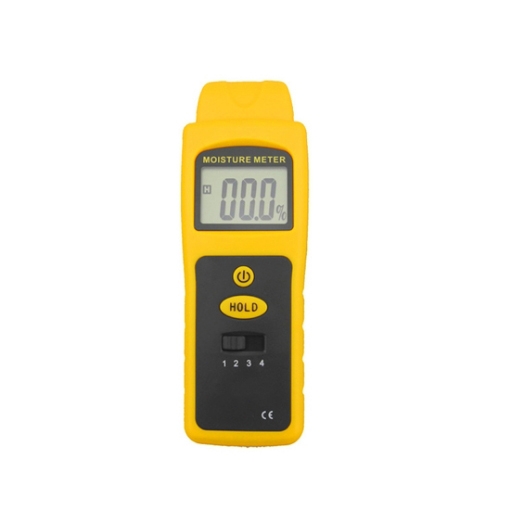

High precision wood moisture tester measuring range 1-90%, 3-digit 17mm oversized LCD. Portable digital wood moisture tester is commonly use to determine the moisture content of lumber, hardwood, and softwood to ensure proper drying and prevent warping, splitting, or cracking during processing.
Features
- Using microcomputer technology to achieve more precise measurements.
- Automatic temperature compensation to effectively reduce the impact of temperature drift on measurement accuracy.
- Large LCD display screen to ensure clear readings with no parallax.
- Low voltage automatic prompt function.
- The entire unit is equipped with high-quality electronic components, and the shell is made of lightweight and sturdy ABS plastic, which is aesthetically pleasing and durable.
High Precision Sensor/ LCD Display
- Phenolic resin high-precision moisture meter, with sensitive response and wide measurement range, suitable for testing the moisture content of various materials.
- High-definition, oversized, low-power LCD display screen, aesthetically pleasing, generous, and convenient to use.
Simple Operation Method
- Select the corresponding gear, then simply lightly press the sensor against the surface of the object to accurately measure the moisture content.
- Adjust the zeroing potentiometer to synchronize the concrete moisture tester with the environment, ensuring more precise measurements.
Applications
The wood moisture meter, also known as the wood moisture detector, is an instrument that can quickly measure the moisture content. Digital wood moisture meters can measure the moisture content of various wood species, including hardwoods, softwoods, engineered wood products like plywood and MDF, and wood-based materials such as particleboard and fiberboard.
Hardwood
Softwood
Lumber
Firewood
Â
| Model | SISCO-MM-7821S |
| Size | Main unit: 165x58x33mm |
| Display | 3-digit 17mm oversized LCD |
| Resolution | 1% |
| Moisture Measurement Range | 1% - 90% (Density range: 0.3 - 10 g/cm³) |
| Instrumental Error | ± (1%Rh+1) |
| Weight | Main unit: 90g (excluding battery)Â |
| Operating Environment | Temperature: -10°C to 60°C; Humidity: 0-70% RH |
| Detection Depth | 0 - 50mm |
| Gear | Gear 1: 0.81-1.00g /cm³ Gear 2: 0.61-0.80g /cm³ Gear 3: 0.50-0.60g /cm³ Gear 4: 0.30-0.49g /cm³ |
Q1: What are the benefits of using a digital moisture meter over traditional methods?Â
A1: Digital moisture meters offer quick, accurate, and non-destructive measurements, unlike traditional methods such as oven drying or chemical tests, which can be time-consuming and may damage the wood. They also allow for on-the-spot readings, enabling immediate adjustments in woodworking processes.
Q2: How do I interpret moisture meter readings?
A2: Moisture meter readings are typically displayed as a percentage of moisture content. Ideal moisture levels vary depending on the wood species and its intended use. Reference tables or charts provided by the sisco can help interpret readings and determine whether the wood is too dry, too wet, or within an acceptable range.
Q3: Can digital moisture meters be used for other materials besides wood?Â
A3: While digital moisture meters are primarily designed for wood, some models offer settings or accessories for measuring moisture in other materials such as drywall, concrete, and carpet.
Tips: How to maintain a digital moisture meter?
To ensure accurate readings, keep the meter's sensors clean and free from debris. Store the meter in a dry environment when not in use and avoid exposing it to extreme temperatures or humidity. Follow the manufacturer's guidelines for battery replacement and recalibration as needed.
