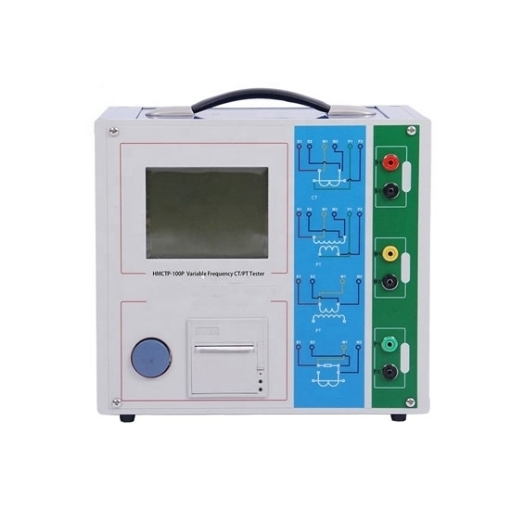

    Current Transformer CT PT Tester, 220V

    CT PT analyzer is used for current transformer testing, AC output voltage 220V, frequency 50Hz, measurement accuracy ± 0.2%, current transformer tester has stable and reliable performance, complete functions, high testing efficiency, and is a professional testing instrument for the power industry.
    SKU: SISCO-CTA-100P
    $8,868.43
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview



    Buy a professional current transformer tester online, which can meet all kinds of CT and PT test requirements, ct pt analyzer has stable and reliable performance, complete functions, a high degree of automation, and easy portability, which is deeply loved by electricians.




    Current transformer analyzer

    Full-featured to meet CT and PT testing requirements

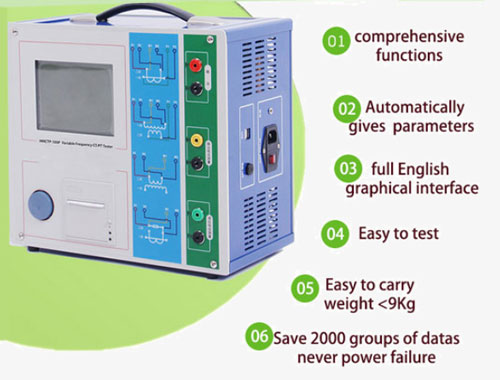

    • Comprehensive functions, not only meet the test requirements of various CT (such as protection, metering, TP) excitation characteristics, transformation ratio, polarity, secondary winding resistance, secondary load, ratio difference, and angle difference, etc. but also available used to test the excitation characteristics, transformation ratio, polarity, secondary winding resistance, ratio difference and angle difference of various PT electromagnetic units.
    • Automatically give voltage/current of inflection point, 10% (5%) error curve, accuracy limit factor (ALF), instrument safety factor (FS), quadratic time constant (Ts), remanence coefficient (Kr), saturation and CT, and PT parameters such as saturation inductance.

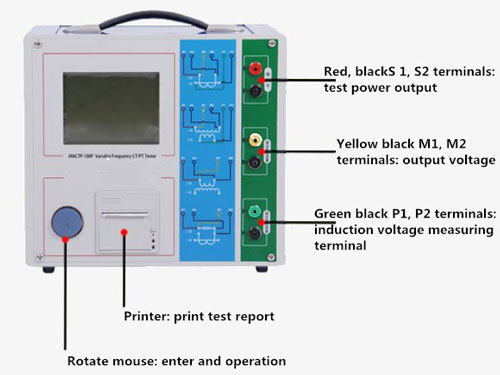

    Current transformer tester



    Stable performance, high test efficiency, powerful storage function

    • The sisco current transformer tester can store 2000 sets of test data, which will not be lost when power is off. After the test is completed, it is stored in the PC with a U disk, the data is analyzed by software, and a WORD report is generated.
    • The test is simple and convenient, with one click to complete the CT direct resistance, excitation, transformation ratio, and polarity test, and except for the load test, all other CT tests use the same wiring method.



    Application

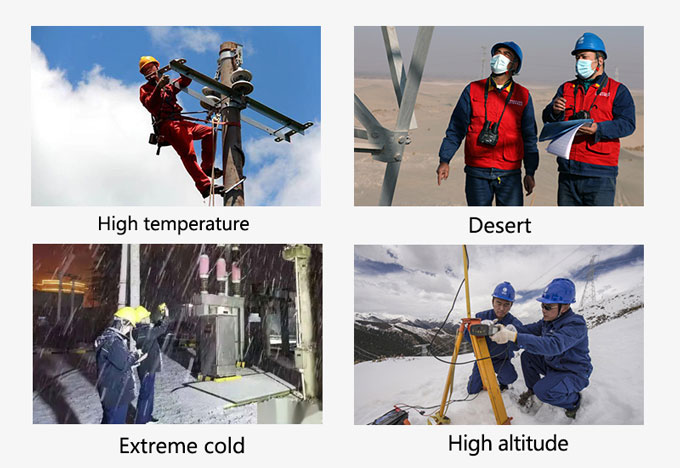

    The current transformer tester adopts a high-speed and high-reliability digital processing module, which meets the requirements of high-power output power test and is convenient for testers to use and carry. The sisco current transformer tester can be used in harsh environments such as high temperature, high humidity, sea, desert, extreme cold, and high altitude.


    Current transformer analyzer applications

    Specs
    Model SISCO-HMCTP-100P
    Input voltage AC220V±10%, 50Hz
    Usage Class P/TP CT & VT
    Output 0~100Vrms, 12Arms, 36A (peak value)
    Voltage Measurement Accuracy ±0.2%
    CT Ratio Range 1~30000
    Accuracy ±0.2%
    PT Ratio Range 1~10000
    Accuracy ±0.2%
    Phase Range ±5min
    Accuracy 0.5min
    DC Resistance Range 0~300Ω
    Accuracy 2%±2mΩ
    Burden Range 0~300VA
    Accuracy 2%±0.2VA
    Environmental Conditions Temperature -10℃~50℃
    Humidity ≤90%
    Dimensions 340*300*150mm
    Weight 9kg
    FAQs

    Q1: What is a current transformer analyzer?
    A1: Current transformer analyzer is a multi-functional field test instrument specially designed for testing voltammetric characteristics, ratio, polarity, error curve, inflection point calculation, and secondary side circuit check of transformers.

    Q2: How to use the current transformer analyzer?
    A2: In the experiment, just set the test voltage and current values, and the device can automatically boost voltage/flow, and can quickly display the volt-ampere characteristic curve of the transformer or the experimental results of the ratio and polarity, etc. It supports data saving and on-site printing. sisico current transformer analyzer not only eliminates the tedious labor of manual voltage regulation, manual recording, and curve drawing but also allows you to upload the test data to your computer through the USB interface on the computer for editing, saving, or printing. It is simple and convenient to operate and improves working efficiency.

    Q3: How to judge the polarity of the current transformer?
    A3: There are many ways to measure the polarity of current transformers, and we often use the following three test methods in our work: the DC method, the AC method, and the instrumentation method.

    Tips: Why is it necessary to measure the polarity of CT?

    The polarity of the current transformer must be checked before and after the handover and overhaul. In addition, when the differential protection, and power direction protection malfunctions or the watt-hour meter is reversed during operation, the polarity of the CT should also be checked. It is because if the polarity of the current transformer is wrongly connected during wiring, the following hazards will occur:

    • The current transformer used in the relay protection circuit will cause the relay protection device to malfunction or reject, affecting the operation monitoring and accident handling of the power system, and even endangering equipment and personal safety in severe cases.
    • If the current transformer is used in the instrument measurement circuit, various instruments, instrument indication, and power measurement will be incorrect.
    • If the current transformer with an incomplete star connection is used, if the polarity of any phase is reversed, it will cause the current transformer to not be connected to one phase (usually in the same phase), and then the current of the other phase will increase by the picture multiple.
    • Using a current transformer with two phases reversed in an incomplete star connection, although the secondary side of the three-phase current can still be balanced, the phase angle difference of the primary side corresponding to the current is 180°, which will make the meter reverse.
