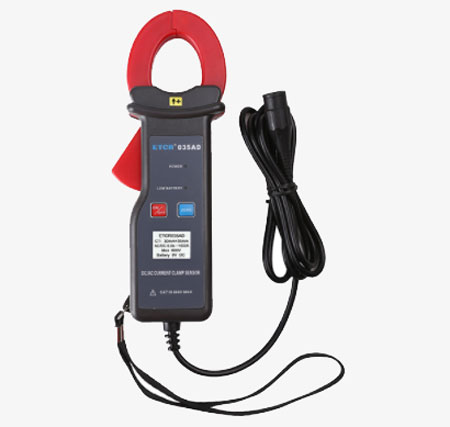

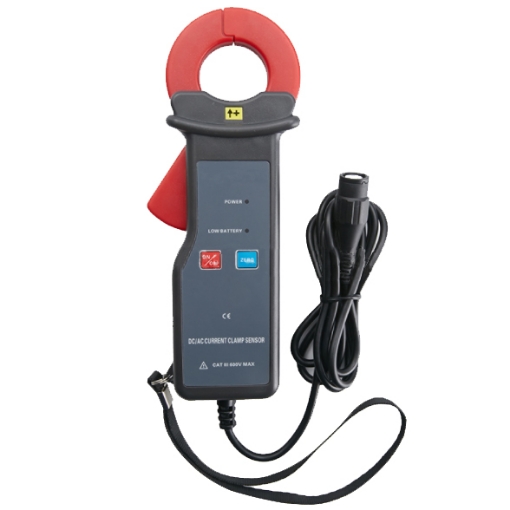

AC DC clamp-on current transformer using Hall induction technology, portable clamp design, no need to disconnect the line under test, the clamp head core selection of special alloy, especially suitable for dense places in line (power metering system, high-speed rail system, automotive circuit maintenance, etc.).
Clamp-on current transformer makes field testing easy
- Non-contact measurement, easy, fast, and safe operation.
- Thin jaws, suitable for small spaces.
- The sisco clamp current transformer uses a permalloy core for stable performance and high accuracy, and is highly resistant to interference, making it suitable for complex interference environments.
- The range, ratio, and output interface of the sensor can be customized according to customer requirements.
- Output connector: φ3.5mm audio plug/BNC plug/4.0mm double banana plug (optional), cable length 1.5m.
Application
High-precision clip-on current transformers is an indispensable accessories for small, medium, and large electronic companies. The sisco clamp-on current transformer is suitable for use in power equipment testing, communications and telecommunications, railway and oilfield monitoring, building and construction companies, research and teaching units, industrial and mining records, and other fields.
| Model | SISCO-ETCR0350AD |
| Power | 9VDC 6F22 |
| Range | 0.0A~ 1000A AC/DC |
| Resolution | AC/DC: 0.1A |
| Accuracy Grade | ±2.0% |
| Phase Error | ≤3° |
| Output Method | Inductive current output |
| Zeroing Method | ZERO key to clear the zero |
| CT Size | 30mm x 35mm |
| Mass | 180g |
| Output Interface | BNC plug/4.0mm double banana plug/3.5mm audio plug/bare wire tap (optional), wire length 1.5m |
| Operating Frequency | DC~400Hz |
| CT Structure | Clamp |
| Dielectric Strength | AC 3700V/rms (between core and shell) |
| Safety Level | CATI600V |
| Output Mode | Induction Current Output |
| Operating Temperature and Humidity | -15°C ~ 50°C ; 80%rh or less |
| Dimension | Â 122mm (L)x 70mm (W) x 33mm (H) |

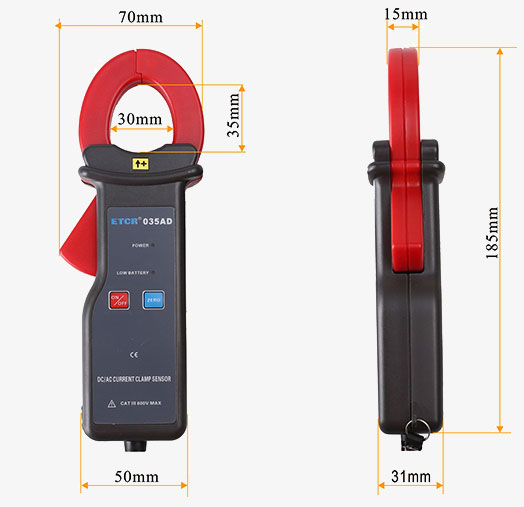

Dimension Unit (mm)
Output interface (optional)
Q1:Â What is a clamp-on current transformer?
A1:Â Clamp-type current transformer is a kind of detection device, that can feel the information of the measured current, and can detect the felt information. Clamp AC transformers according to a certain law into a certain standard need to meet the electrical signal or other required forms of information output, in order to meet the requirements of information transmission, processing, storage, display, recording, and control. For example, switching power supply, hard switch, soft switch, etc.
Q2:Â What equipment can be used with a clamp-on current transformer?
A2:Â Clamp-on current transformers can be used with multimeters (mA level current grade), oscilloscopes, and other instruments, and clamp-on AC transformers can also be used as current probes.
Q3:Â What are the advantages of sisco clamp-on current transformer?
A3:Â sisco clamp-on current transformer is a precision current transformer, which is specially designed for power field measurement and metering use characteristics. The clamp-on current transformer is made of high permeability material, high precision, strong anti-interference ability, etc. When using the clamp-on current transformer can be directly clamped on the bus bar or bus bar without cutting off the line power outage its use is very convenient.
Tips: The working principle of AC/DC clamp-on current transformer
AC/DC clamp-on current transformer adopts a split core and Hall element (hole element) combination, which can detect AC and DC currents at the same time, when the measured current I passes through the sensor, the Hall element inductively outputs a Hall voltage VH, which can be calculated by detecting the Hall voltage VH, to calculate the tested current I. The Hall voltage VH is proportional to the tested current I, and the corresponding output by the sensor is: 10mV/1A, that is, input 1A current, proportional output 10mV voltage, that is, input 0~60A current, corresponding output 0~600mV voltage.
