    50 kV 3 kVA AC DC Hipot Tester

    50 kV AC DC hipot tester with digital display control box, capacity 3 kVA, simple operation, clear reading, flexible use, is the ideal choice for power systems and various power users on-site testing of electrical equipment.
    SKU: SISCO-HTGTB-350
    *
    *
    $2,448.95
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    3 kVA AC DC hipot tester output voltage 50 kV, special capacity can be customized, the original simple operation box, compact and sturdy structure, easy to use, reliable work, easy maintenance, is the ideal control equipment for outdoor high-voltage test, can be widely used in electric power, water conservancy, chemical, railway, and other industries and experiments.

    Hipot tester detail

    The coil is formed by vacuum-casting epoxy resin

    • The magnetic flux leakage is effectively weakened, and the dielectric strength and moisture resistance are improved.
    • The new type of coil epoxy vacuum casting and CD-type iron core technology has a compact structure and no oil leakage.

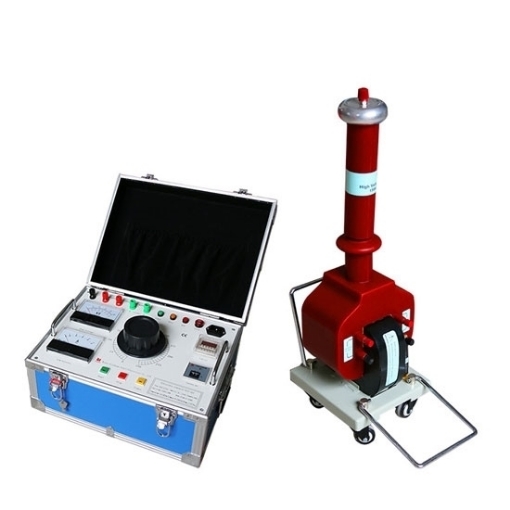

    Top of hipot tester

    Small size, light weight and compact structure

    • Good safety and reliability, beautiful appearance.
    • Simple and intuitive wiring, easy to use.

    Application

    sisco hipot tester has a small size, lightweight, compact structure, full functionality, easy to use, and other characteristics. Hipot tester performance can meet the user's various special requirements sector, a variety of high-voltage electrical equipment, electrical components, and insulation materials for frequency withstand voltage test and DC leakage test, is an essential instrument in the high-voltage test.

    Specs
    Model SISCO-HTGTB-350
    Capacity 3 kVA
    Input Voltage 110V/ 120V/ 220V
    Frequency 50Hz/ 60Hz
    Output Voltage 50 kV
    Current 60 mA
    DC Output 70 kV
    Phase 1 Phase
    Weight (Transformer + Control Box) 48 kg
    Cooling Method Dry
    Effeciency 90%
    Impedance Voltage <12%
    Surface Temperature Raising < 55°C
    No Load Current < 4%
    Output Voltage Waveform Sine Wave
    Usage AC DC Hipot Tester
    Warranty 12 Months
    Temperature Environment 0~40°C
    Altitude <2000m
    Relative Humidity <85%

    Note: AC leakage current meter is not provided.


    Wiring Diagram

    Hipot tester AC wiring diagram

    Hipot tester DC wiring diagram


    Packing List

    NO. Description Quantity
    1 Hipot Test Set (1 Control Box + 3 kVA Dry Transformer) 1
    2 Power Supply Cable 1
    3 Earth Cable 1
    4 Connecting Line 1
    5 Fuse 3
    6 Rectifying Diode 1
    7 User Manual 1
    FAQs

    Q1: What is hipot tester?
    A1: AC-DC test transformer, using advanced production equipment, using the coil winding epoxy vacuum casting and CD-type core of the new technology, and similar products compared to oil-immersed transformers, significantly reduce the weight, reduce the volume, in quality to improve the insulation strength and resistance to moisture degree, and effectively weaken the leakage of magnetic and greatly enhance the transformer to withstand the impact of test short-circuit current capacity.

    Q2: Is high voltage testing destructive?
    A2: Hipot (or high potential testing) is a non-destructive test that goes by many names: overvoltage testing, dielectric breakdown testing, dielectric withstand testing, or insulation resistance testing. Some of all of these tests are designed to make sure that the insulation materials used in your motor are doing their job.

    Q3: What is the difference between the hipot and the Megger?
    A3: Both instruments apply a relatively high voltage to the insulator and absorb leakage current through the insulator commensurate with its insulation characteristics and condition. However, the megohmmeter gives the operator a measured value, while the hipot acts.

    Tips: Why does Hipot tester have a lower limit current setting?

    The hipot tester on the production line is used very frequently, especially the test line, test fixture, etc. are often in an active state, which is easy to cause the internal core wire to break and open, and it is generally difficult to find. As long as there is an open circuit at any point in the loop; the high voltage output by the withstand voltage tester cannot really be added to the object under test. All these reasons will result in that the high voltage set is not really applied to the tested object during the withstand voltage test. Naturally, the current flowing through the tested object is almost zero at this time. If the value is set, the instrument will give a prompt that the test is qualified, and consider that the insulation is qualified. But the test data in this case is unreal. If the measured object at this time happens to be defective in insulation performance, it will cause serious misjudgment.
